Installation Procedure

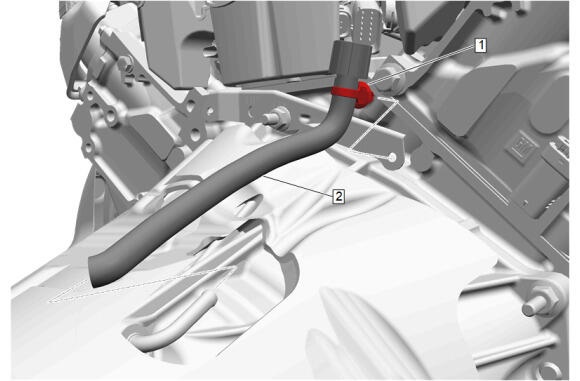

Install transmission vent hose. (2)
- Install the transmission vent hose retainer (1).
Front Wheelhouse Liner (1) - Install
- CAUTION:
Refer to Fastener Caution .
Front Wheelhouse Liner Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Wheelhouse Liner Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Wheelhouse Liner Retainer (2) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Wheelhouse Liner Bolt (1) - Install and tighten [3x] - Fastener Specifications
{If equipped} Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Lower the vehicle.
NOTE:
Quantity of fasteners may vary based on option content.
