Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

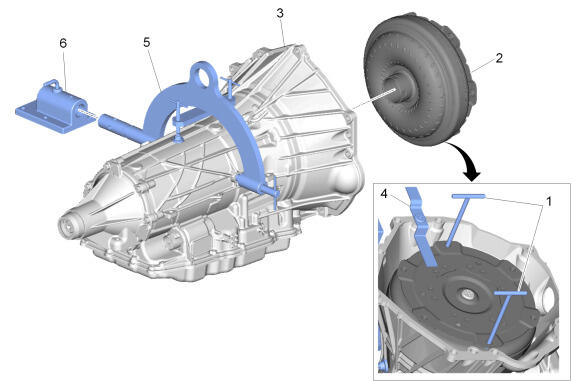

Install the DT-46409 Torque Converter Lifting Handles (1) into to the torque converter (2).
Torque Converter (2) Install

WARNING:

The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.

NOTE:

If the converter holding strap does not fit, ensure that the converter is fully installed.

Install the DT-21366 Converter Holding Strap (4).
Rotate the transmission so the pan is facing down then secure the transmission with the DT-03289-20 Holding Fixture Base Assembly (6) locking pin.
Support the transmission with a overhead hoist attached to DT-48989 Holding Fixture (5), then remove the DT-03289-20 Holding Fixture Base Assembly (6) locking pin.
Remove the DT-48989 Holding Fixture (5) and the automatic transmission case (3) from the DT-03289-20 Holding Fixture Base Assembly (6).
Secure the automatic transmission to a suitable transmission jack then remove the DT-48989 Holding Fixture (5) from the transmission.
Transmission - Install - Automatic Transmission Removal and Installation ((LM2 & RWL & F47) , or Automatic Transmission Removal and Installation (LM2 & RWL - F47)
