Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. GM5544191Courtesy of GENERAL MOTORS COMPANY

    Rear Propeller Shaft Bolt (1) - Remove [4x]

  3. GM5544194Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Remove

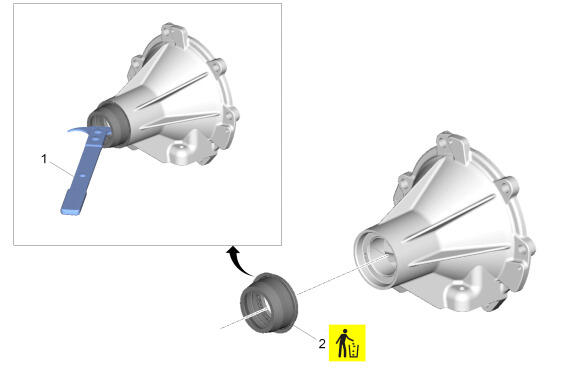

  4. GM4738746Courtesy of GENERAL MOTORS COMPANY

    Using the DT-45000  Seal Remover (1), remove and DISCARD the propeller shaft transmission flange fluid seal (2).
