Installation Procedure
- Note the part unique number (PUN) before installing the valve solenoid body. Control Valve Solenoid Body Identification Information

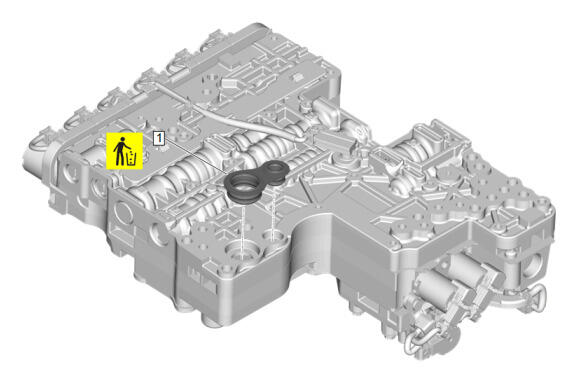

Automatic Transmission Fluid Pump Seal (1) - Install NEW
- CAUTION:
The Park Pawl Actuator Lever must be in the park position, fully forward position, and aligned with the slot in the piston servo prior to lowering the Control Valve Assembly into place. Contact between the switch housing or magnet carrier and the end of the Park Pawl Actuator Lever during installation can damage these components and lead to failure. This damage may not be immediately apparent and may occur during subsequent vehicle operation.
NOTE:Ensure the automatic transmission fluid pump seal is in the control valve body.
NOTE:The piston servo (2) opening must be positioned correctly as shown. Use appropriate tool to position opening if necessary.
Place the park pawl actuator (1) in the park position.
- Carefully place the control valve body assembly (3) in the transmission ensuring park pawl actuator lever (1) aligns inside the piston servo opening (2).
- Control Valve Body Assembly (3) - Install
- Connect the main control wiring harness connector (4) then lock the connector latch (5).
- Park Inhibitor Solenoid (6) - Install
- Connect the park inhibitor solenoid connector (7).
- NOTE:
Allow bolt holes to dry before installing bolts.
Clean the bolt holes and ensure they are free from old sealant.
- Control Valve Solenoid Body Bolt (1) - Install and hand tighten [2x]
- Control Valve Solenoid Body Bolt (2) - Install NEW and hand tighten [3x]
- Control Valve Solenoid Body Bolt (3) - Install and hand tighten [2x]
- Control Valve Solenoid Body Bolt (1, 2, 3) - Tighten in sequence [7x] - Fastener Specifications
Automatic Transmission Auxiliary Fluid Pump (3) - Install
- Automatic Transmission Auxiliary Fluid Pump Bolt (2) - Install and tighten [3x] - Fastener Specifications
- Connect the automatic transmission auxiliary fluid pump electrical connector (1).
Automatic Transmission Auxiliary Fluid Pump Seal (1) - Install NEW
- Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (2) - Install NEW
- Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (3) - Install
- Control Valve Upper Body Bolt (4) - Install and tighten - Fastener Specifications
Automatic Transmission Fluid Filter (2) - Install - Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement (LM2)
- Perform the transmission control solenoid valve characterization programming procedure. Q77 Transmission Control Solenoid Valve Characterization Programming
Ensure the wiring harness is not pinched after valve body installation.
Refer to Fastener Caution .
Refer to Torque-to-Yield Fastener Caution .
The bolts are marked by arrows in the valve body casting.
