Installation Procedure

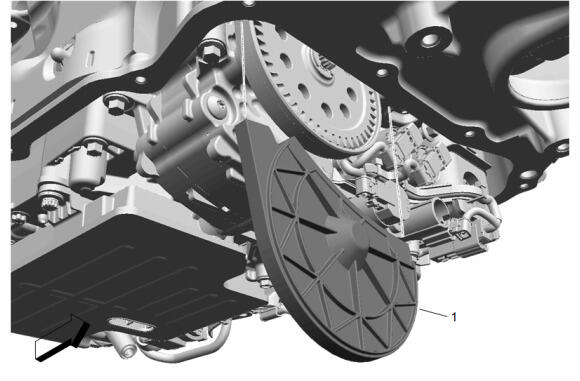

  1. GM5584479Courtesy of GENERAL MOTORS COMPANY

    Install and snap the automatic transmission fluid pump driven gear baffle (1) into place.

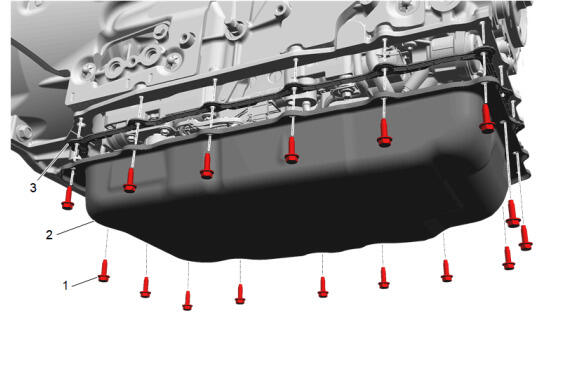

  2. GM5569829Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Pan (2) - Install - Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement (L84/L87) , or Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement (LM2)
