Installation Procedure

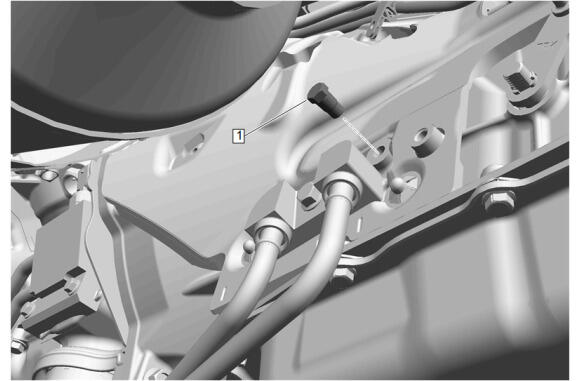

  1. GM5579662Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Automatic Transmission Fluid Pressure Test Hole Plug (1) - Install and tighten - Fastener Specifications

  2. Check the transmission fluid level and fill as necessary. Transmission Fluid Level and Condition Check
  3. Lower the vehicle.
