Installation Procedure

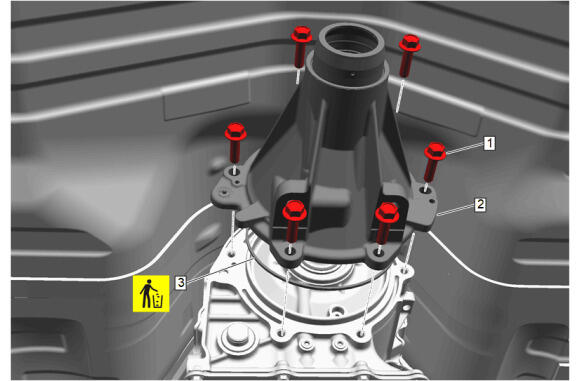

Automatic Transmission Case Extension Seal (3) - Install NEW
- Lubricate the inner diameter of the transmission output shaft seal with NEW transmission fluid prior to installing the automatic transmission case extension. Adhesives, Fluids, Lubricants, and Sealers
- Automatic Transmission Case Extension (2) - Install
- Automatic Transmission Case Extension Bolt (1) - Install and tighten in sequence [6x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

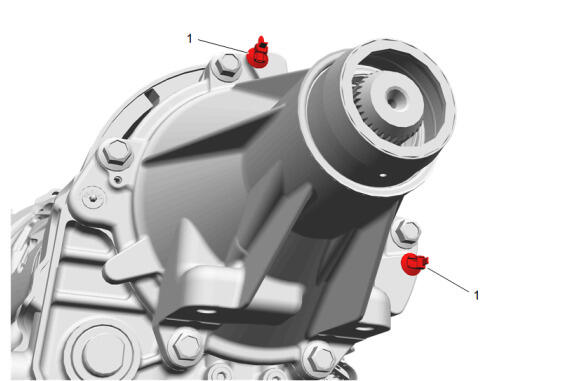

Install the 2 wiring harness retainers (1).

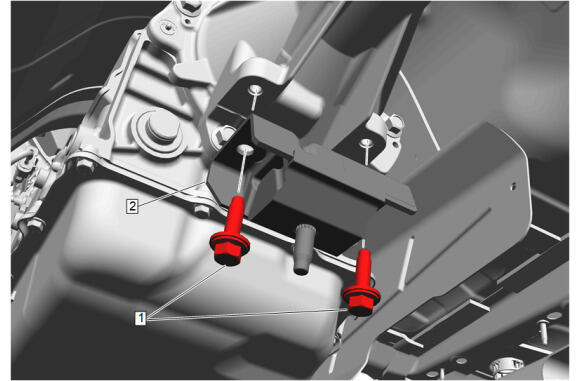

Transmission Mount (2) - Install
- Transmission Mount Bolt (1) - Install and tighten [2x] - Fastener Specifications
Transmission Support Crossmember (1) - Install
Transmission Support Crossmember Bolt (3) - Install [4x]
- Transmission Support Crossmember Nut (2) - Install and tighten [4x] - Fastener Specifications
- Transmission Mount Nut (1) - Install and tighten - Fastener Specifications

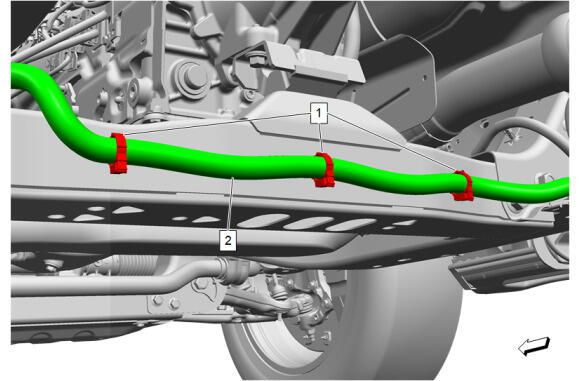

Position the wiring harness (2) as necessary then install the harness into the 3 wiring harness retainers (1).
- Remove the transmission jack.

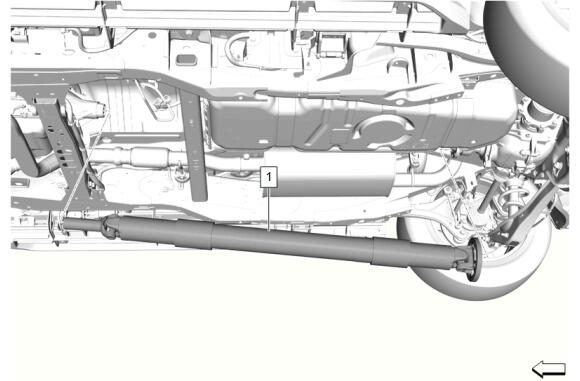

Propeller Shaft (1) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Rear Propeller Shaft Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Lower the vehicle.
- If necessary, check the transmission fluid level and condition. Transmission Fluid Level and Condition Check
CAUTION:
Refer to Fastener Caution .
