Camshaft Position Actuator Park Position Verification

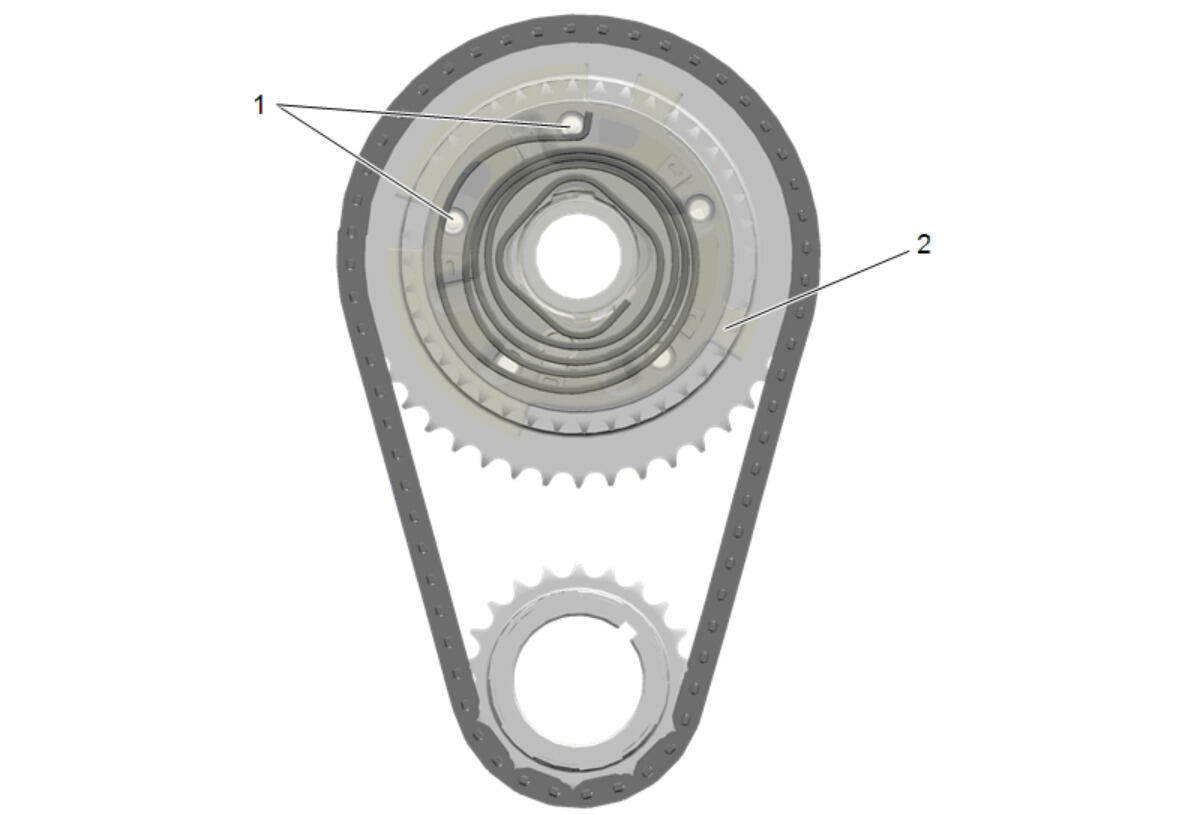

GM5384847Courtesy of GENERAL MOTORS COMPANY

The CMP actuator can be visually inspected to determine if the tension spring has returned the reluctor wheel and rotor to the park position.

With the reluctor wheel returned to the proper parked position, the pins (1) will be positioned in the slots of the reluctor wheel (2) as shown.
