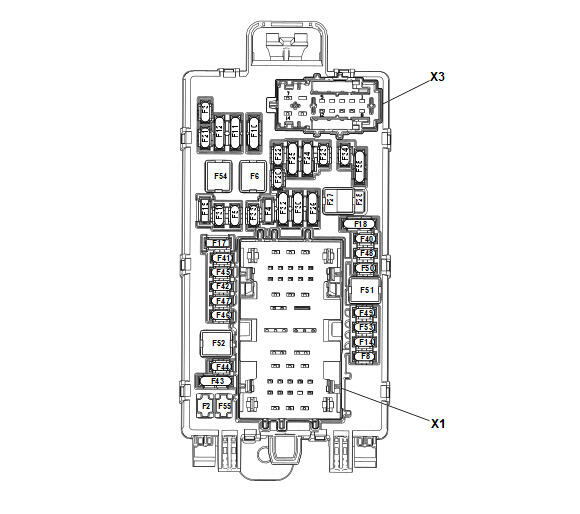

X51R Instrument Panel Wiring Harness Junction Block - Right Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F2	LT DOORS	F2DR	30A	M74D Front Side Door Window Regulator Motor - Driver S79LR Rear Side Door Window Switch - Left
F3	UGDO/OHC/CAMERA	F3DR	10A	A103 Roof Console B117A Windshield Outside Moisture/Ambient Light and Humidity Sensor B174W Front View Camera - Windhsield (UEU) E104 Emergency Vehicle Reading Lamp (6C7)
F4	BCM 2	F4DR	20A	K9 Body Control Module
F5	DISPLAYS	F5DR	15A	A26 Heater and Air Conditioning User Interface Control - Front P16 Instrument Panel Cluster Control Module P29 Head-up Display (UV6)
F6	FRT BLWR	F6DR	40A	M8 Blower Motor (-00H) K8 Blower Control Module (00H)
F8	LT DOOR PNL	F8DR	10A	S79D Front Side Door Window Control Switch - Driver
F10	TILT	F10DR	15A	K99 Steering Column Tilt Wheel and Telescope Control Module (N38)
F11	DLC/COL LOCK/ICS	F11DR	10A	A22 Radio Control K60 Column Lock Module X84 Data Link Connector
F12	CGM/ONSTAR	F12DR	10A	K56 Serial Data Gateway Module K73 Telematic Control Module
F14	RT DOOR PNL	F14DR	10A	S79P Front Side Door Window Switch - Passenger
F17	STR WHL CNTRL	F17DR	2A	S70L Cruise Control Switch (KI3) S70R Radio Control Switch - Steering Wheel (KI3)
F18	NOT USED	F18DR	10A	Not Used
F19	NOT USED	F19DR	2A	Not Used
F20	NOT USED	F20DR	5A	Not Used
F21	NOT USED	F21DR	10A	Not Used
F22	HTD WHL	F22DR	7.5A	K32 Steering Wheel Heating Control Module (KI3)
F23	NOT USED	F23DR	10A	Not Used
F24	NOT USED	F24DR	10A	Not Used
F25	SEO/UPFITTER	F25DR	15A	E35L Spot Lamp - Left (7X2/7X3) E35R Spot Lamp - Right (7X2/7X3)
F26	USB/SEO RAP	F26DR	10A	W12FC Blunt Cut - Front Seat/Center Console (5W4/9C1) W12RCL Blunt Cut - Left Rear Cargo Trim (5W4/9C1) X92BCL USB Receptacle - 3rd Row Seat Left X92BCR USB Receptacle - 3rd Row Seat Right X92CD Dual Charge Only Receptacle - Floor Console Rear
F27	APO/RAP	F27DR	50A	CB1DR
F28	NOT USED	F28DR	50A	CB1DR
F30	SDM AOS/DMS/NVM	F30DR	10A	K36 Restraints Control Module K85P Restraints Occupant Classification System Module - Passenger S76 Trailer Brake Control Switch (JL1)
F31	BCM 3	F31DR	20A	K9 Body Control Module
F32	CSM USB	F32DR	15A	A11 Radio (IOS/IOT) X92G USB 2 Port Receptacle (AZ3/D07/DCK/UW9)
F33	BCM 4	F33DR	30A	K9 Body Control Module
F34	OUT OF PARK	F34DR	5A	KR87 Transmission Park Position Relay
F40	NOT USED	F40DR	10A	Not Used
F41	NOT USED	F41DR	10A	Not Used
F42	ELEC PRK/BRK SW	F42DR	10A	K212 Gear Shift Control Module S91 Parking Brake Control Switch
F43	RSI/MFC	F43DR	10A	P22F Video Display - Right Front Seat Back (UW9) P22E Video Display - Left Front Seat Back (UW9) X23 Multimedia Receptacle (D07/DCK/(DCK-UW9) X83B Audio/Video Receptacle ((D07/DCK/DCH)+UW9)
F44	NOT USED	F44DR	10A	Not Used
F45	RADIO MDL	F45DR	15A	A11 Radio (IOR)
F46	NOT USED	F46DR	10A	Not Used
F47	NOT USED	F47DR	10A	Not Used
F48	TCM	F48DR	20A	K71 Transmission Control Module
F49	BCM 1	F49DR	15A	K9 Body Control Module
F50	NOT USED	F50DR	10A	Not Used
F51	NOT USED	F51DR	40A	Not Used
F52	NOT USED	F52DR	40A	Not Used
F53	NOT USED	F53DR	10A	Not Used
F54	SUNROOF	F54DR	40A	K61 Sunroof Control Module (C3U)
F55	APO 3	F55DR	15A	E32 Cigarette Lighter Receptacle (DT4)
F58	SPARE	F58DR	15A	Not Used
Relays
Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
-	-	KR87 Transmission Park Position Relay	-	S143L Rear Seat Back Folding Switch - 2nd Row Left (ATN/ATT) S143R Rear Seat Back Folding Switch - 2nd Row Right (ATN/ATT) S144A Rear Seat Back Folding Siwtch - 2nd Row Rear Compartment (ATN/ATT) W12FC Blunt Cut - Front Seat/Center Console (5W4/9C1) W12RCL Blunt Cut - Left Rear Cargo Trim (5W4/9C1)
