X309 Body Wiring Harness to Body Wiring Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

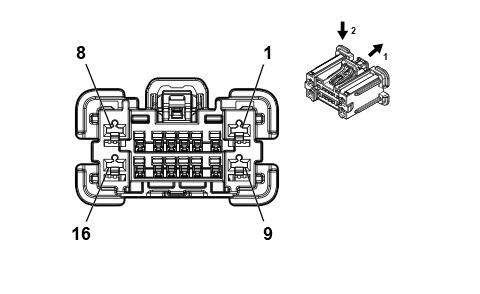

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35465015
- Service Connector: 13543061
- Description: 16-Way F 1.2, 2.8 OCS Series (BK)
|

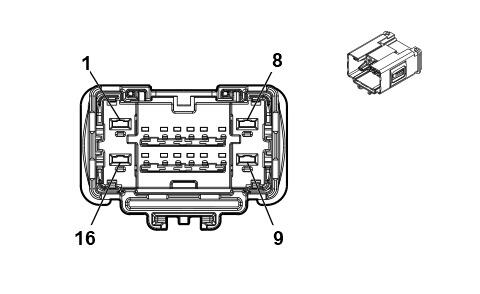

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35465017
- Service Connector: 13543064
- Description: 16-Way M 1.2, 2.8 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370818 |
J-35616-12 (BU) |
J-38125-215A |
| I |
19370818 |
J-35616-12 (BU) |
J-38125-215A |
| II |
85524896 |
J-35616-4A (PU) |
J-38125-215A |
| III |
19355732 |
J-35616-5 (PU) |
J-38125-215A |
| IV |
84867140 |
J-35616-13 (BU) |
J-38125-215A |
| IV |
84867140 |
J-35616-13 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
1 - 4 |
- |
- |
- |
- |
- |
| 5 |
0.35 |
BU/VT |
4101 |
I |
- |
AUTOSAR CAN Bus [+] 4 Serial Data |
5 |
0.35 |
BU/VT |
4101 |
IV |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
- |
RD/GN |
3140 |
I |
- |
Battery Positive Voltage |
7 |
- |
RD/GN |
3140 |
IV |
- |
| 8 |
1 |
RD/GN |
3140 |
II |
- |
Battery Positive Voltage |
8 |
1 |
RD/GN |
3140 |
III |
- |
| 9 |
0.5 |
RD/BN |
4940 |
I |
- |
Battery Positive Voltage |
9 |
0.5 |
RD/BN |
4940 |
III |
- |
| 10 - 12 |
- |
- |
- |
- |
- |
Not Occupied |
10 - 12 |
- |
- |
- |
- |
- |
| 13 |
0.35 |
WH |
4100 |
I |
- |
AUTOSAR CAN Bus [-] 4 Serial Data |
13 |
0.35 |
WH |
4100 |
IV |
- |
| 14 - 16 |
- |
- |
- |
- |
- |
Not Occupied |
14 - 16 |
- |
- |
- |
- |
- |
