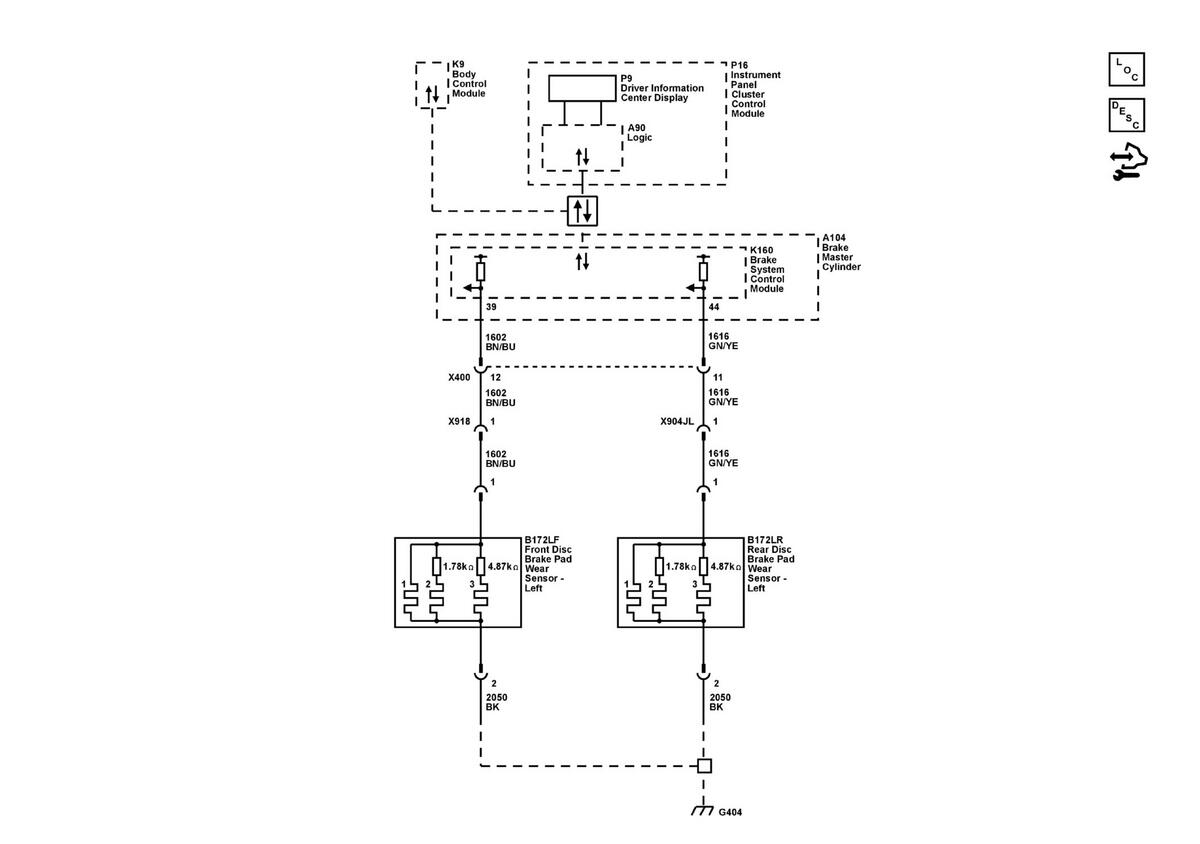

Home >> Chevrolet >> 2024 >> Tahoe Commercial, 4WD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes >> Schematic Wiring Diagrams >> Disc Brake Wiring Schematics >> Brake Pad Wear Sensors (JBK)
