Installation Procedure
Rear Brake Caliper (1) - Install

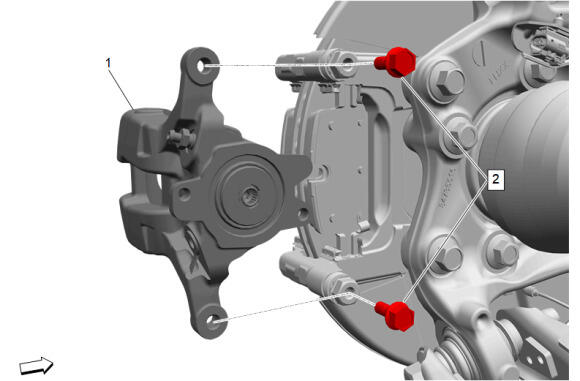

- Rear Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Remove the plug from the brake hose outlet.
- Remove the plug the rear brake caliper inlet.
Rear Brake Washer (2) - Install NEW [2x]

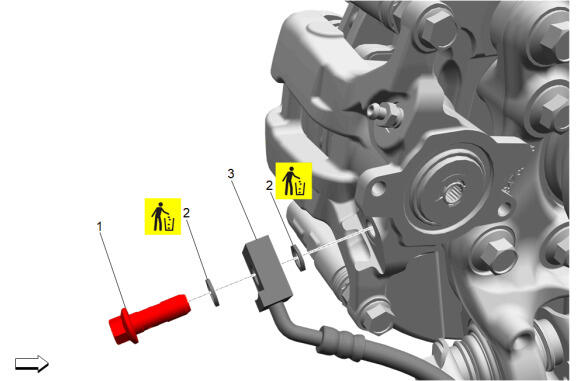

- Rear Brake Hose (3) @Rear Brake Caliper - Install
- Rear Brake Hose Fitting (1) - Install and tighten - Fastener Specifications

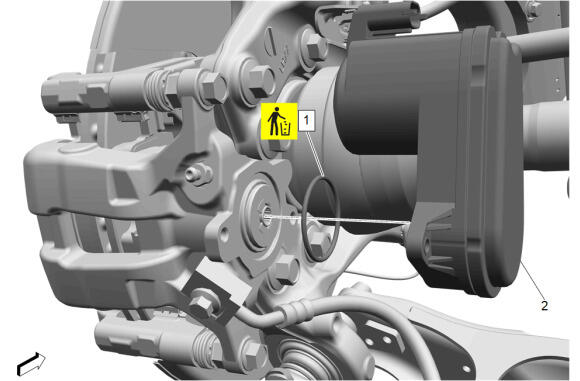

Rear Parking Brake Actuator LeverSeal (1) - Install NEW
- Rear Parking Brake Actuator (2) - Install

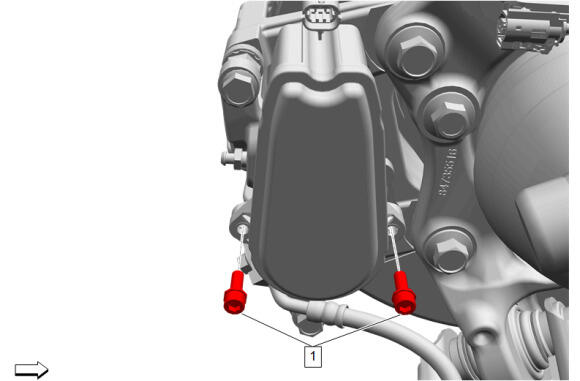

Rear Parking Brake Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
Electrical Connector (1) @Rear Parking Brake Actuator - Connect
{If equipped} Rear Disc Brake Pad Wear Sensor (2) - Install
- {If equipped} Connect the electrical connector. (3)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1/5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (J61) , or Hydraulic Brake System Bleeding (J49/J55)
- Check for brake system leaks.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Calibrate the park brake. Park Brake Calibration
CAUTION:
