Installation Procedure
- CAUTION:

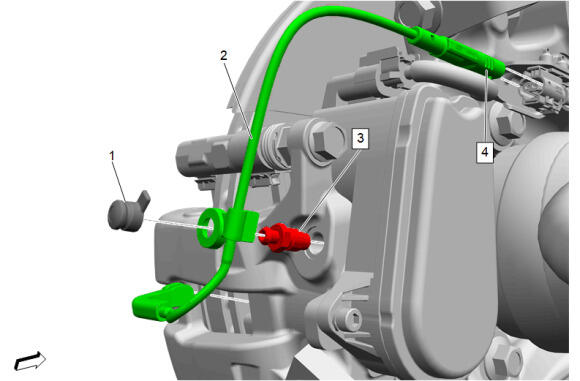

Rear Brake Bleeder Valve (3) - Install and tighten - Fastener Specifications
- {If equipped} Rear Disc Brake Pad Wear Sensor (2) - Install
- {If equipped} Connect the electrical connector. (4)
- Rear Brake Bleeder Valve Cap (1) - Install
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1/5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Check for brake system leaks.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
