Installation Procedure
- Apply approximately 0.09 - 0.15 g (0.003 - 0.005 oz) of anti-seize lubricant to each end of the disc brake pad abutments which contact the brake caliper. Adhesives, Fluids, Lubricants, and Sealers
Front Disc Brake Pad Retaining Spring (1) - Install

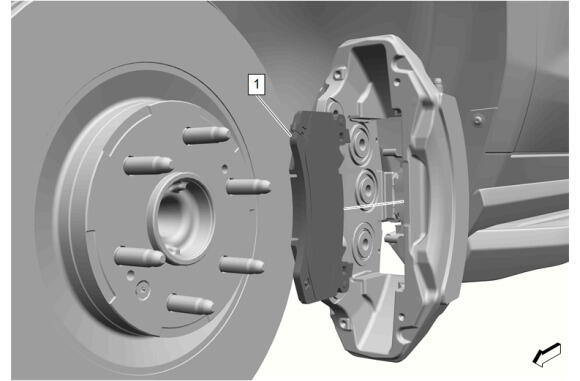

Front Disc Brake Outer Pad (1) - Install

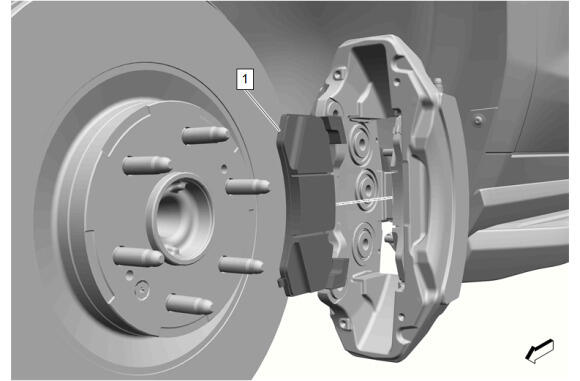

Front Disc Brake Inner Pad (1) - Install
Front Disc Brake Pad Pin (1) - Install [2x]

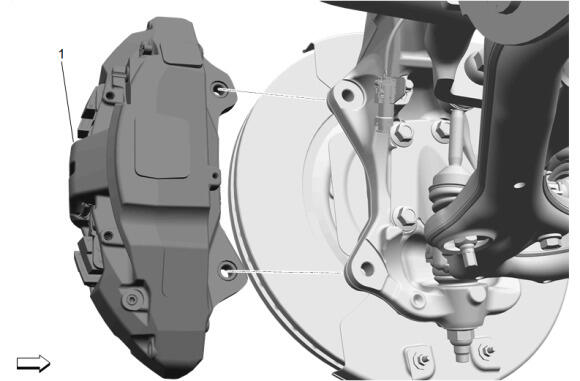

Front Brake Caliper (1) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.

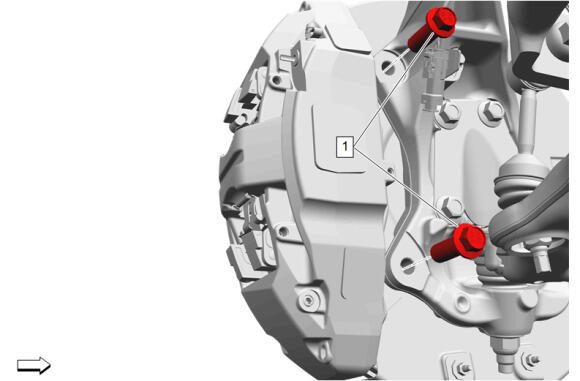

- Front Brake Caliper Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Remove the plug from the brake hose outlet.
- Remove the plug the front brake caliper inlet.

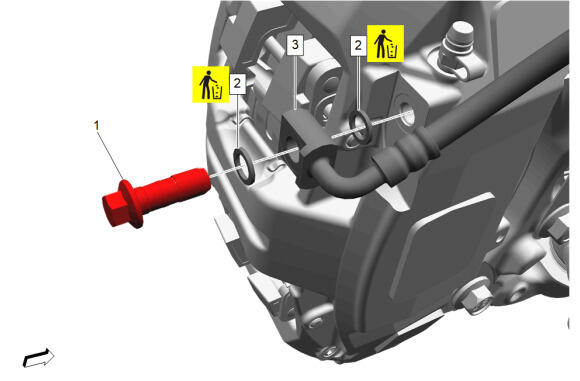

Front Brake Washer (2) - Install NEW [2x]
- Front Brake Hose (3) - Install
- Front Brake Hose Fitting (1) - Install and tighten - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1/5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (J61) , or Hydraulic Brake System Bleeding (J49/J55)
- Check for brake system leaks.
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
