Installation Procedure

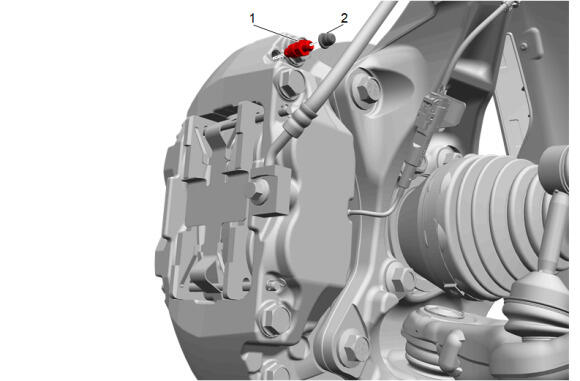

  1. GM5518967Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Component Fastener Tightening Caution

    Front Brake Caliper Bleeder Valve (1) - Install and tighten - Fastener Specifications

  2. Front Brake Caliper Bleeder Valve Cap (2) - Install
  3. Check for brake system leaks.
  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1/5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
  5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
  6. Remove the support and lower the vehicle.
