Installation Procedure

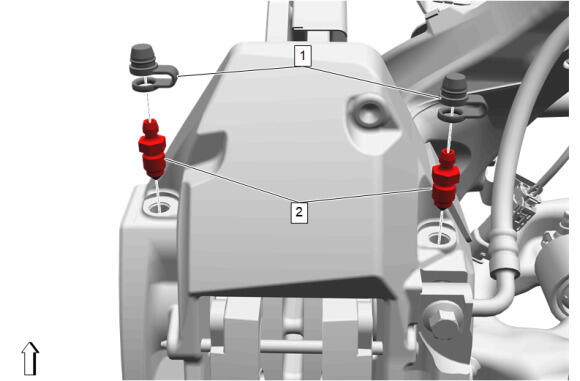

Front Brake Caliper Bleeder Valve (2) - Install and tighten [2x] - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1/5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (J61) , or Hydraulic Brake System Bleeding (J49/J55)
- Front Brake Caliper Bleeder Valve Cap (1) - Install [2x]
- Check for brake system leaks.
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
