Installation Procedure

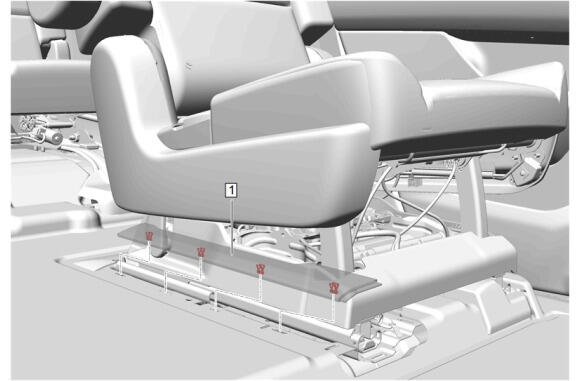

  1. GM5599041Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Track Rear Inboard Cover-Outboard (1) - Install

  2. GM5600942Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Track Rear Inboard Cover-Inboard (1) - Install

  3. Return the rear seat to the original position.
  4. GM5599039Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Track Front Inboard Cover (1) - Install
