Installation Procedure

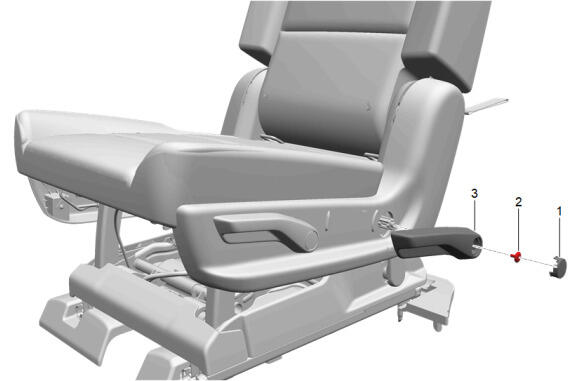

  1. GM5599027Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Seat Riser Bolt (2) - Install and tighten - Fastener Specifications
  3. Rear Seat Recliner Handle Bolt Cap (1) - Install
