Installation Procedure

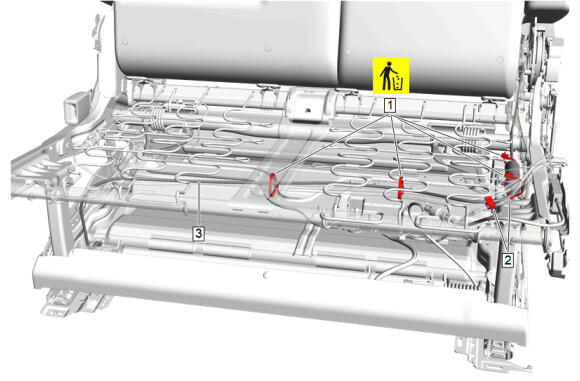

Rear Seat Latch Cable-Track Release Easy Entry (3) - Install
- If equipped, install the rear seat cable into the rear seat cable retainers (2).
- Tie Strap (1) - Install NEW [4x]
- Place the rear seat in the fold and tumble position.
- Install the cable ends into the seat frame.
- Secure the seat cable retaining features as necessary.

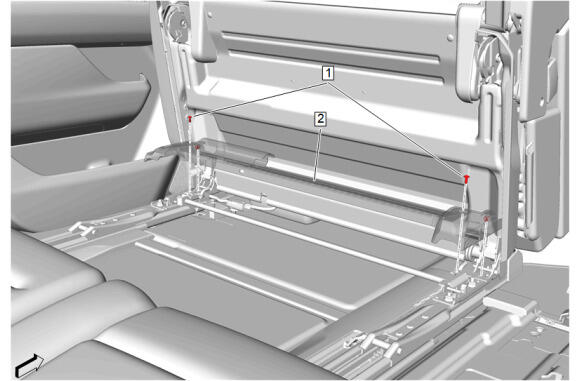

Rear Seat Track Finish Cover (2) - Install
- Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the wiring harness retainers.
- Return the rear seat to the original position.

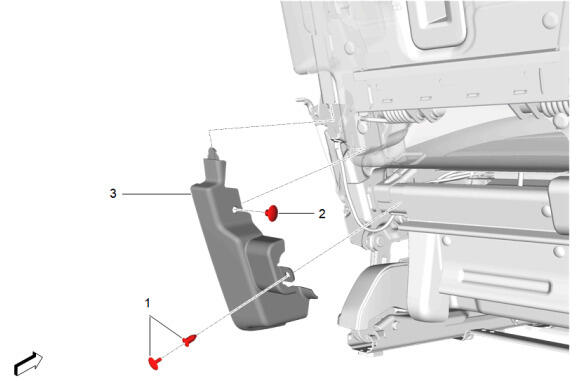

Rear Seat Recliner Inner Finish Cover (3) - Install
- Rear Seat Back Cover Retainer (2) - Install
- Rear Seat Riser Finish Cover Retainer (1) - Install

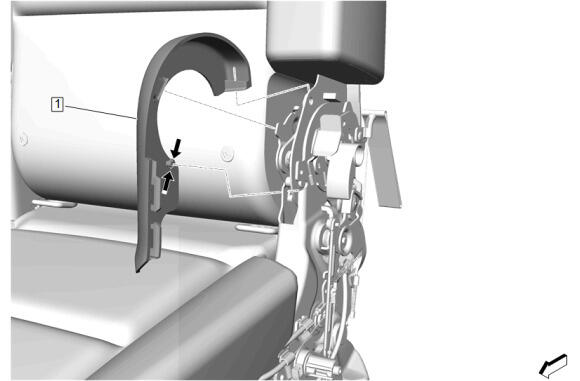

Rear Seat Hinge Finish Cover-Outboard (1) - Install

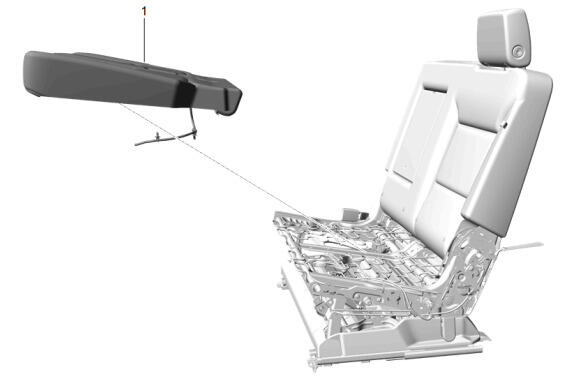

Rear Seat Cushion Cover and Pad (1) - Install - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
CAUTION:
Refer to Fastener Caution .
