Installation Procedure

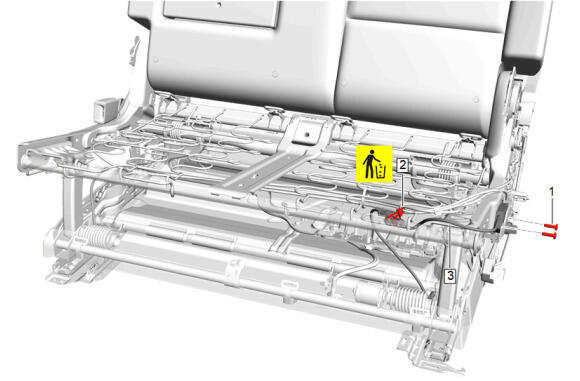

Rear Seat Latch Cable-Track Release Comfort Adjustment (3) - Install
- Tie Strap (2) - Install NEW
- Rear Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Following complete cable installation, push in the free length adjuster clip to set cable length.
Place the rear seat in the fold and tumble position.
- Install the cable end into the seat frame.
- Rear Seat Track Finish Cover (2) - Install
- Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the wiring harness retainers.
- Return the rear seat to the original position.
Rear Seat Cushion Cover and Pad (1) - Install - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
CAUTION:
Refer to Fastener Caution .
