Installation Procedure

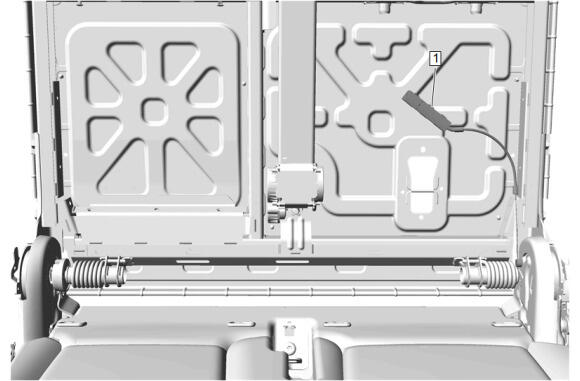

  1. GM5611934Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Latch Cable-Head Restraint Release (1) - Install

  2. Install the cable end into the seat frame.
  3. Secure the seat cable retaining features.
  4. GM5608400Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cover and Pad (1) - Install - Rear Seat Back Cover and Pad Removal and Installation (Bucket) , or Rear Seat Back Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Back Cover and Pad Removal and Installation (60 Percent)
