Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

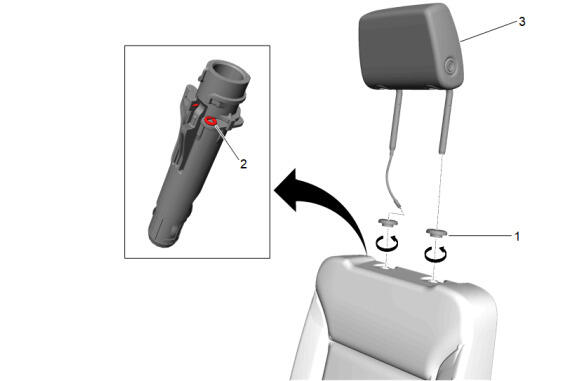

Rear Seat Head Restraint Guide (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Head Restraint Guide Bezel (1) - Install [2x]
Rear Seat Head Restraint (3) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

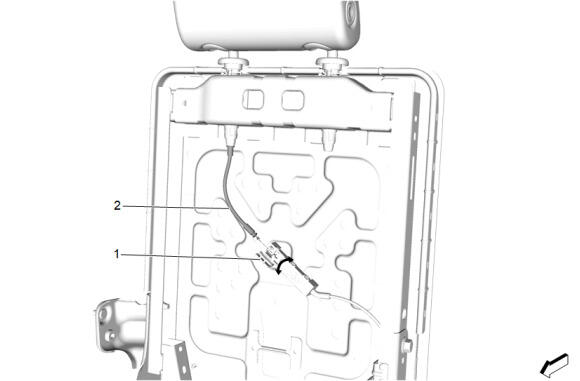

Install the rear seat head restraint cable (2).
Close the rear seat head restraint cable cover (1).
Position the rear seat back cover, pad, and retainers to the original location.
Zip the left and right rear seat back cover zippers.
Connect the J-channel retainers.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Anchor Plate Bezel (1) - Install
Return the seat to its original position.
