Installation Procedure

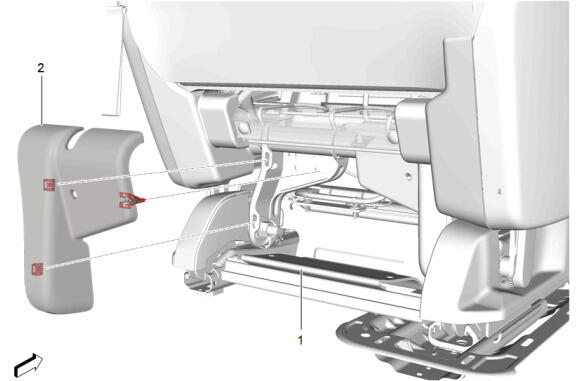

  1. GM5605755Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Rear Finish Cover (2) - Install

  2. Rear Seat Cushion Trim Panel (1) - Install
  3. Position the rear of the rear seat cushion cover and pad to the original location.

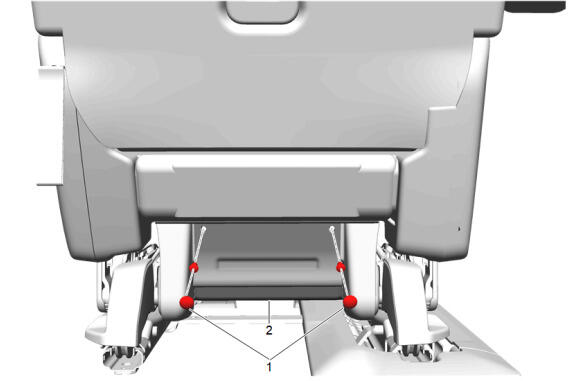

  4. GM5605756Courtesy of GENERAL MOTORS COMPANY

    Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

  5. Rear Seat Riser Finish Cover Retainer (1) - Install [2x]
