Installation Procedure

  1. GM5609524Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Trim Panel (2) - Install

  2. Rear Seat Riser Finish Cover Retainer (1) - Install [2x]
  3. Return the rear seat to the original position.
  4. GM5608397Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Opening Finish Cover Retainer (1) - Install [4x]

  5. Secure the J-channel retainers on the rear seat cushion trim panel (2).

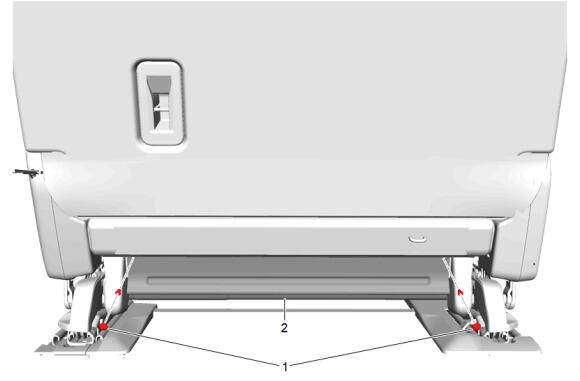

  6. GM5608396Courtesy of GENERAL MOTORS COMPANY

    Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

  7. Rear Seat Riser Finish Cover Retainer (1) - Install [2x]
  8. GM5608393Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Inner Finish Cover-Inboard (1) - Install

  9. GM5599035Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Inner Finish Cover-Outboard (1) - Install

  10. GM5605358Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Finish Cover (1) - Install [2x]

  11. Return the opposite rear seat to the original position.
  12. GM5608392Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Finish Cover (2) - Install

  13. Rear Seat Riser Finish Cover Retainer (1) - Install
