Installation Procedure
- CAUTION:
Ensure the seat heater is not folded or creased during installation as damage to the internal circuitry may occur, causing performance issues and damage to seat components.
If replacing the rear seat cushion pad (2), install NEW rear seat cushion heater, if equipped.

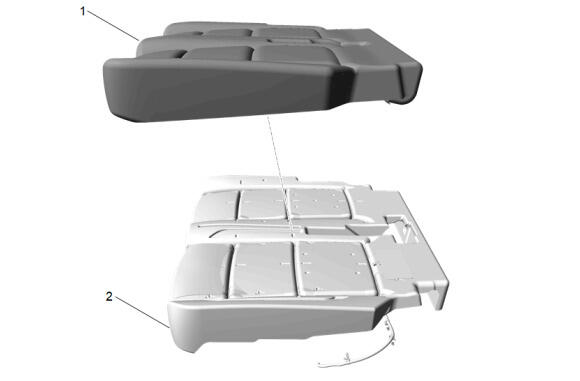

- Install the rear seat cushion cover (1) onto the rear seat cushion pad (2).
Rear Seat Cushion Cover and Pad (1) - Install - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
