Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:

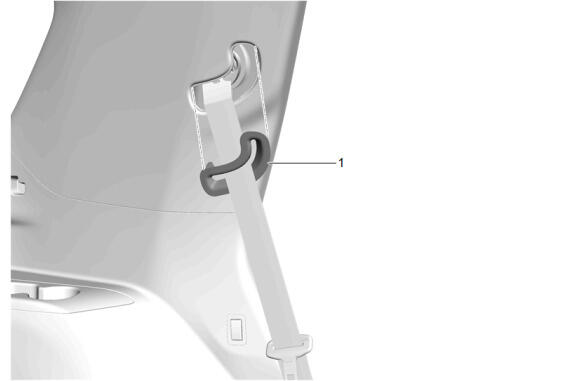

Feed the rear seat belt anchor plate and cover through the rear set belt opening bezel to install.

Rear Seat Belt Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

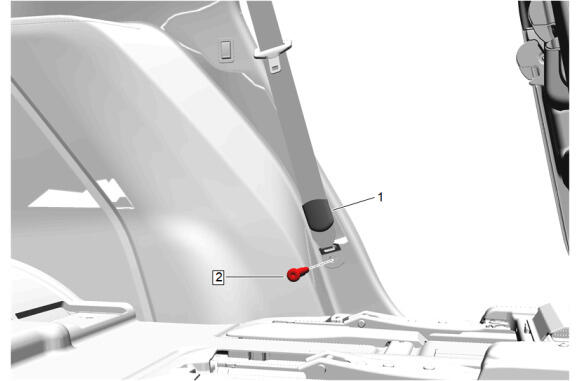

Rear Seat Belt Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications
Rear Seat Belt Anchor Plate Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Return the rear seat (1) to the original position.
Enable the SIR System. SIR Disabling and Enabling
