Installation Procedure

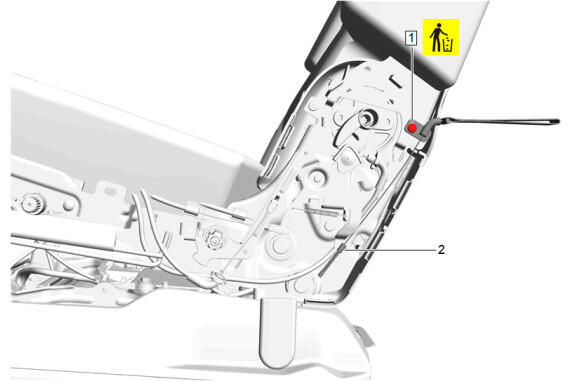

  1. GM5607649Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Latch Strap (2) - Install

  2. Install the cable end into the seat frame.
  3. Rear Seat Rivet (1) - Install NEW

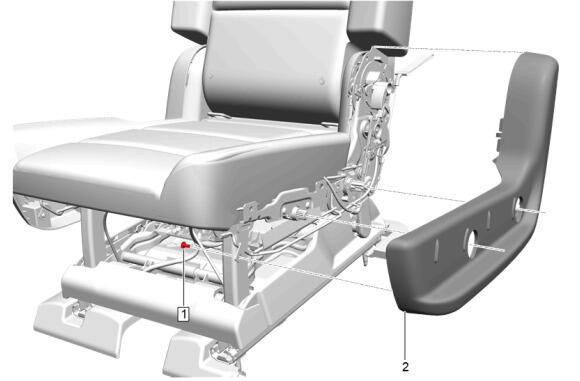

  4. GM5599028Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Outer Finish Cover - Outboard (2) - Install

    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Seat Bolt (1) - Install and tighten - Fastener Specifications
  6. GM5599027Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle (3) - Install

  7. Rear Seat Riser Bolt (2) - Install and tighten - Fastener Specifications
  8. Rear Seat Recliner Handle Bolt Cap (1) - Install

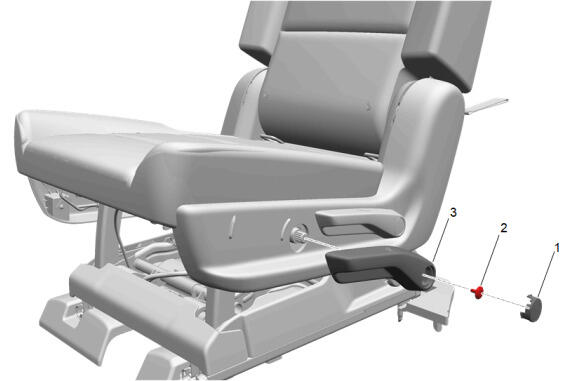

  9. GM5599026Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Adjuster Handle (3) - Install

  10. Rear Seat Riser Bolt (2) - Install and tighten - Fastener Specifications
  11. Rear Seat Recliner Handle Bolt Cap (1) - Install
