Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

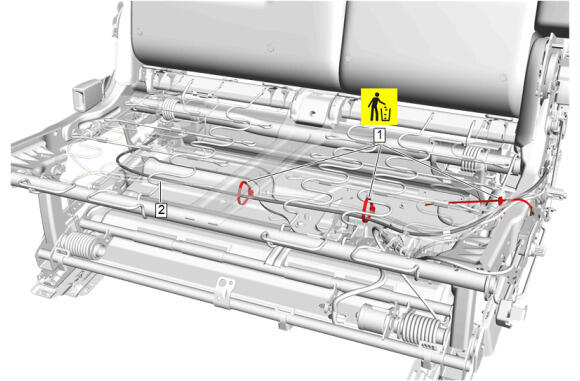

Rear Seat Back Latch Cable-Inboard Floor Latch (2) - Install
Install the cable ends into the seat frame.
Secure the seat cable retaining features.
Tie Strap (1) - Install NEW [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Latch Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Inner Finish Cover-Inboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Riser Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Finish Cover (2) - Install
Rear Seat Riser Finish Cover Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion Cover and Pad (1) - Install - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
