Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

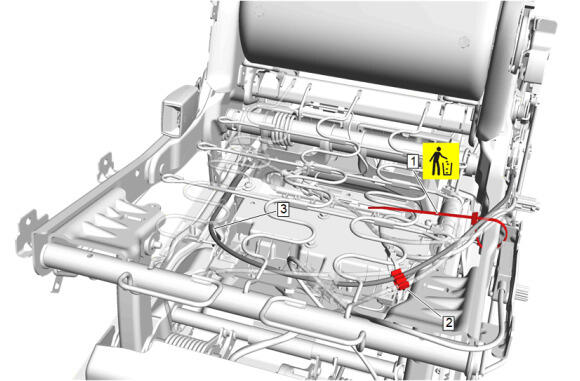

Rear Seat Back Latch Cable-Inboard Floor Latch (3) - Install
Install the cable ends into the seat frame.
Secure the seat cable retaining features.
If equipped, secure the rear seat back latch cable (3) into the cable retainer (2).
Tie Strap (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Latch Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Inner Finish Cover-Inboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Riser Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion Cover and Pad (1) - Install - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
