Installation Procedure

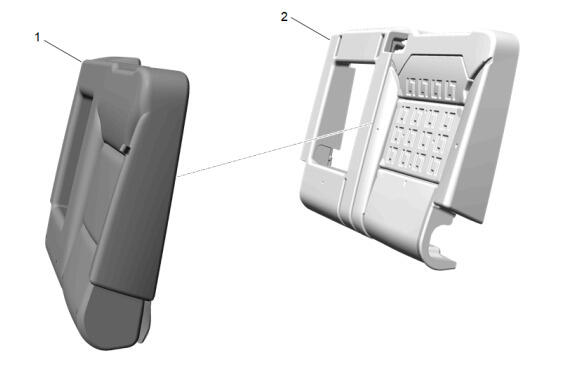

  1. GM5608402Courtesy of GENERAL MOTORS COMPANY

    Install the rear seat back cover (1) to the rear seat back pad (2).

  2. Secure the clips retaining the rear seat back cover (1) to the rear seat back pad (2).
  3. GM5608400Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cover and Pad (1) - Install - Rear Seat Back Cover and Pad Removal and Installation (Bucket) , or Rear Seat Back Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Back Cover and Pad Removal and Installation (60 Percent)
