Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the rear seat back cover and pad (1) as an assembly.
Feed the rear seat center belt through the opening in the rear seat back cover and pad (1).
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Head Restraint Guide Bezel (1) - Install [2x]
Rear Seat Head Restraint (3) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Install the rear seat head restraint cable (2).
Close the rear seat head restraint cable cover (1).
Position the rear seat back cover, pad, J-channel retainers, and retainers to the original location.
Zip the left and right rear seat back cover zippers.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Anchor Plate Bezel (1) - Install
Return the rear seats to their original positions.
Courtesy of GENERAL MOTORS COMPANY

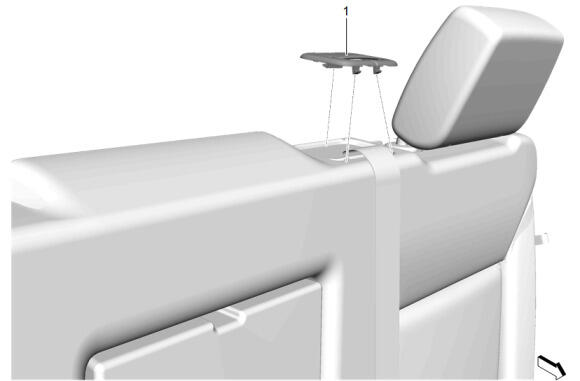

Slide the rear seat center belt through the rear seat center belt opening bezel (1).
Rear Seat Center Belt Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

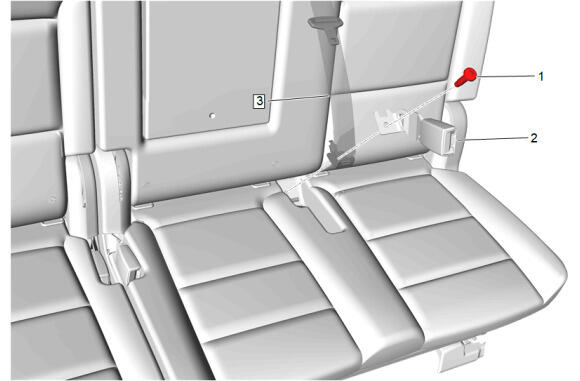

Position the rear seat center belt and anchor plate (3) to the original location.
Rear Seat Belt Buckle (2) - Install

CAUTION:

Rear Seat Center Belt Anchor Plate Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Armrest (2) - Install
Rear Seat Riser Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Armrest Mount Panel (2) - Install
Rear Seat Back Opening Finish Cover Retainer (1) - Install
Return the rear seat armrest to the original position.
