Installation Procedure

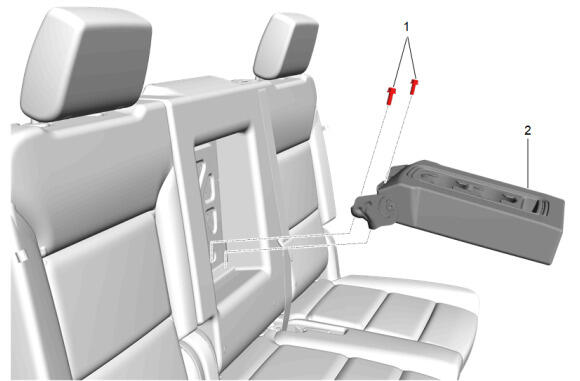

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Armrest (2) - Install

CAUTION:

Refer to Fastener Caution .

Rear Seat Riser Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Armrest Mount Panel (2) - Install
Rear Seat Back Opening Finish Cover Retainer (1) - Install
Return the rear seat armrest to the original position.
