Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

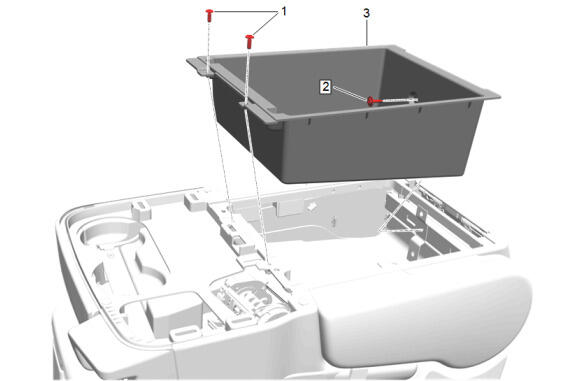

Front Seat Stowage Compartment (3) - Install

CAUTION:

Front Seat Stowage Compartment Bolt -Rear (2) - Install and tighten - Fastener Specifications
Front Seat Stowage Compartment Bolt -Front (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

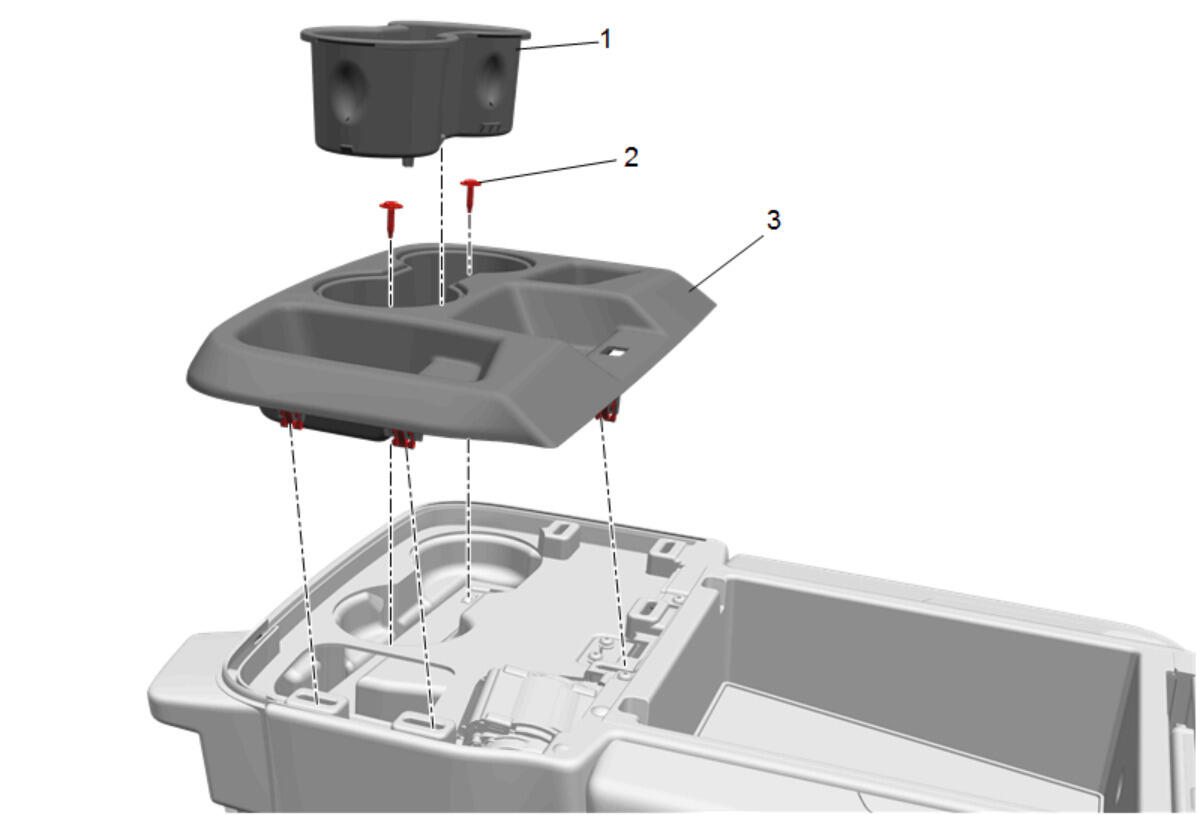

Front Seat Armrest Cup Holder (3) - Install
Front Seat Armrest Cup Holder Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Center Seat Cup Holder (1) - Install
