Installation Procedure

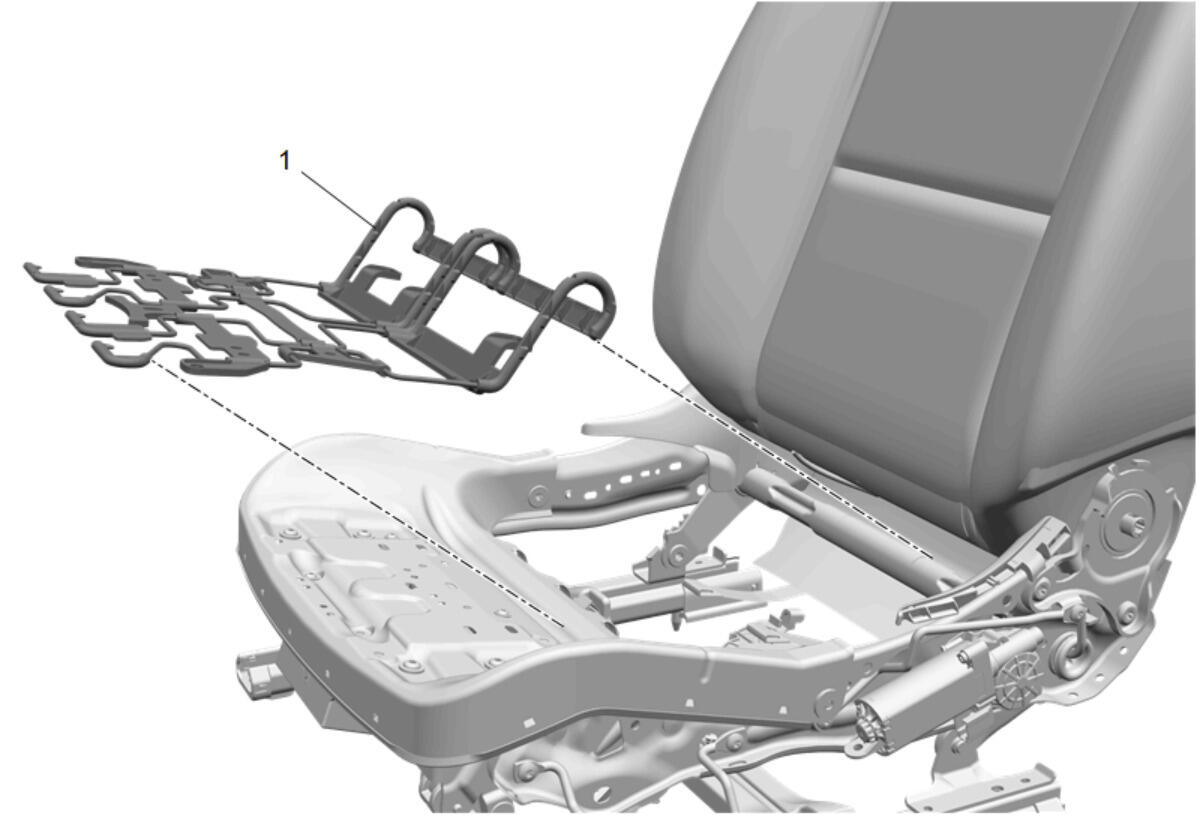

  1. GM5001206Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Support (1) - Install

  2. Connect the wiring harness retainers.
  3. GM5023174Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Ventilation Blower (1) - Install

  4. GM5587513Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover and Pad (1) - Install - Front Seat Cushion Cover and Pad Removal and Installation
