Installation Procedure
Front Seat Cushion Frame (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect and position the wiring harness.

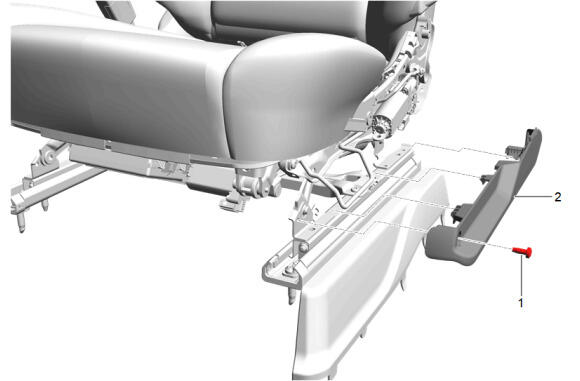

Front Seat Adjuster Lower Finish Cover (2) - Install
- Front Seat Bolt (1) - Install and tighten - Fastener Specifications
Front Seat Cushion Cover Retainer (2) - Install
- Front Seat Adjuster Finish Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
Front Seat Inner Adjuster Front Finish Cover (2) - Install
- Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications

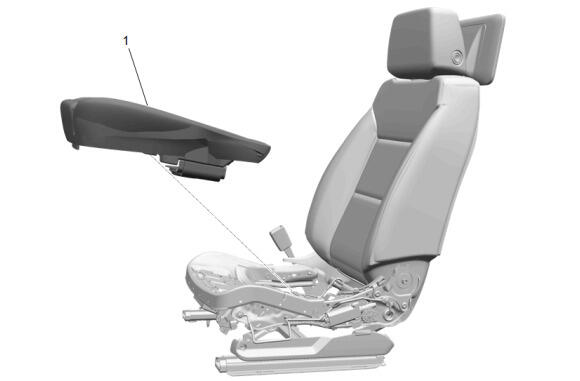

Front Seat Cushion Cover and Pad (1) - Install - Front Seat Cushion Cover and Pad Removal and Installation
CAUTION:
Refer to Fastener Caution .
