Installation Procedure

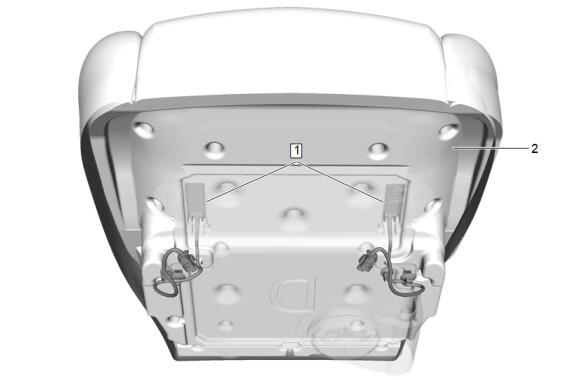

If equipped, ensure both front seat lane departure warning actuators (1) are properly installed in the front seat cushion pad (2) prior to reassembly. Failure to do so may result in an unwanted or undesirable noise during front seat lane departure warning actuator operation.
Install the front seat cushion cover and pad (1) as an assembly.
- Install the retainers holding the front seat cushion cover to the front seat cushion frame.
- Connect the electrical connectors and position the wiring harness.
Seat the retaining tabs securing the front seat cushion ventilation blower (1) to the front seat vent fan mat.
Connect the electrical connectors.
- Front Seat Cushion Outer Finish Cover (2) - Install
- Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
Front Seat (2) - Install - Front Seat Removal and Installation
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
