Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

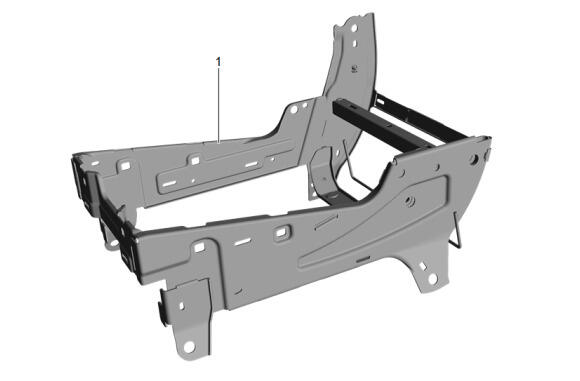

Front Seat Cushion Center Frame (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Pad Center Support (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Seat Center Storage Compartment Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

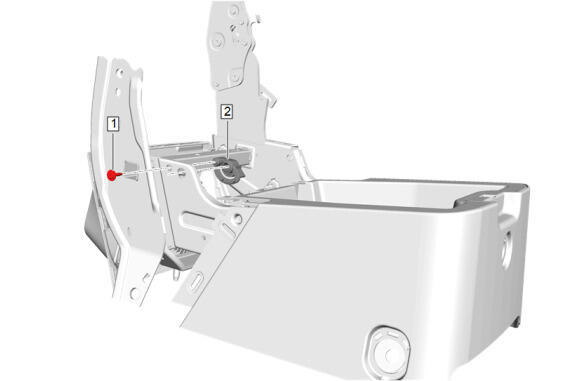

Front Seat Back Latch (2) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Back Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Center Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

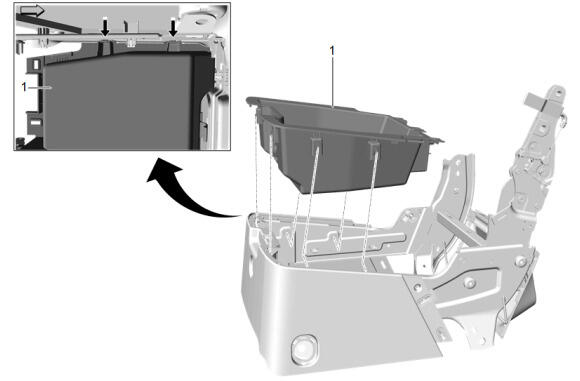

Front Seat Stowage Compartment (1) - Install
{If equipped} Electrical Connector - Connect
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors as necessary.

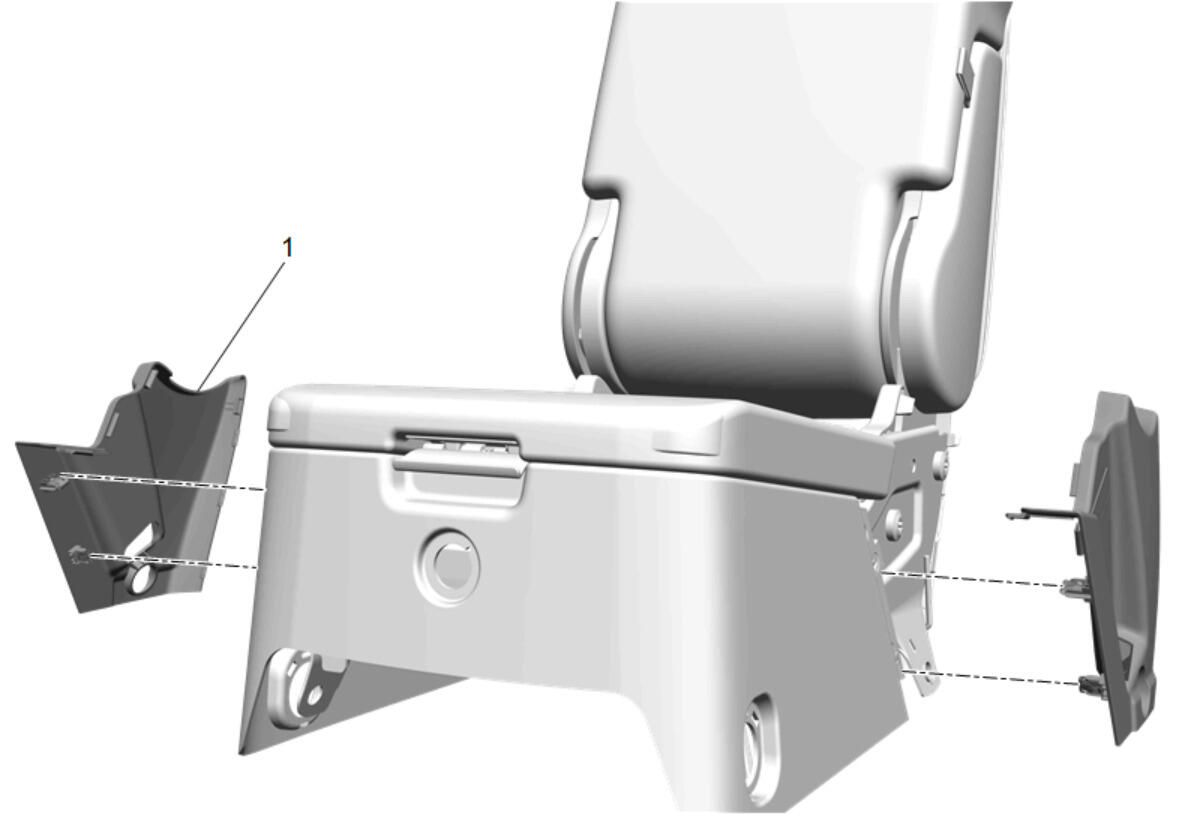

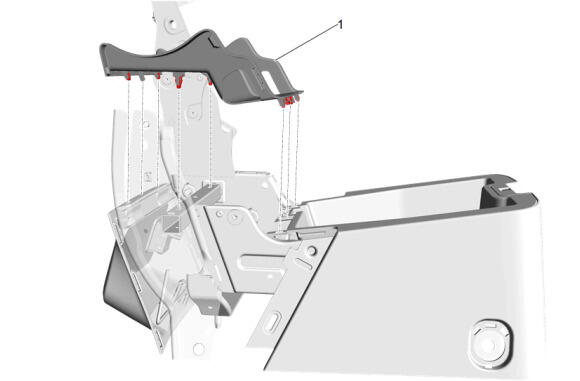

Front Seat Back Rear Center Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Center Armrest Hinge Finish Inner Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Center Pad (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Cushion Center Pad Pivot Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

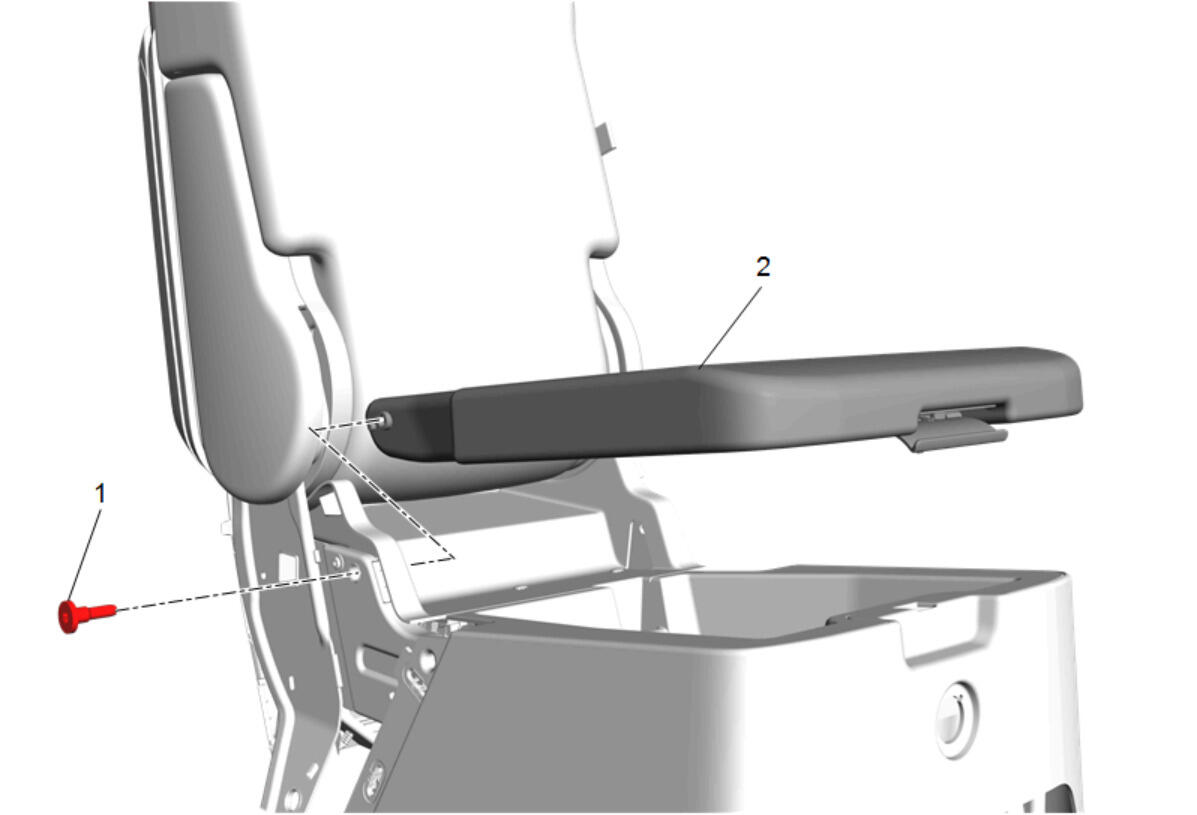

Front Center Seat Armrest (2) - Install
Front Seat Center Armrest Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the latch release cable.
Courtesy of GENERAL MOTORS COMPANY

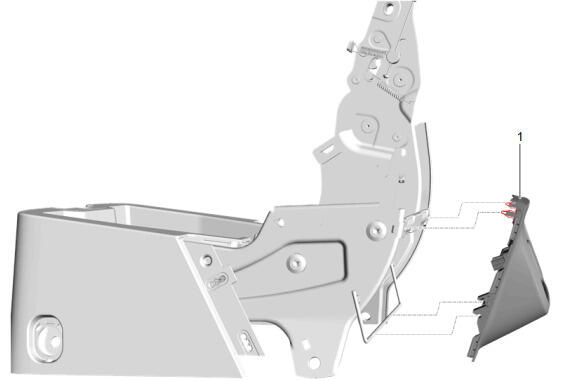

Front Seat Center Armrest Hinge Finish Cover-Lower (1) - Install [2x]
Front Seat Center Belt Anchor Plate - Install
Front Seat Center Belt Buckle - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Armrest Adjust Retainer (3) - Install
Front Seat Armrest Adjust Retainer Bolt (2) - Install and tighten - Fastener Specifications
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Center Armrest Pivot Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Seat Center Armrest Hinge Finish Cover-Upper (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Center Seat (3) - Install - Front Center Seat Removal and Installation
