Installation Procedure

  1. GM5045533Courtesy of GENERAL MOTORS COMPANY

    Front Seat Center Armrest Hinge Finish Cover-Upper (1) - Install

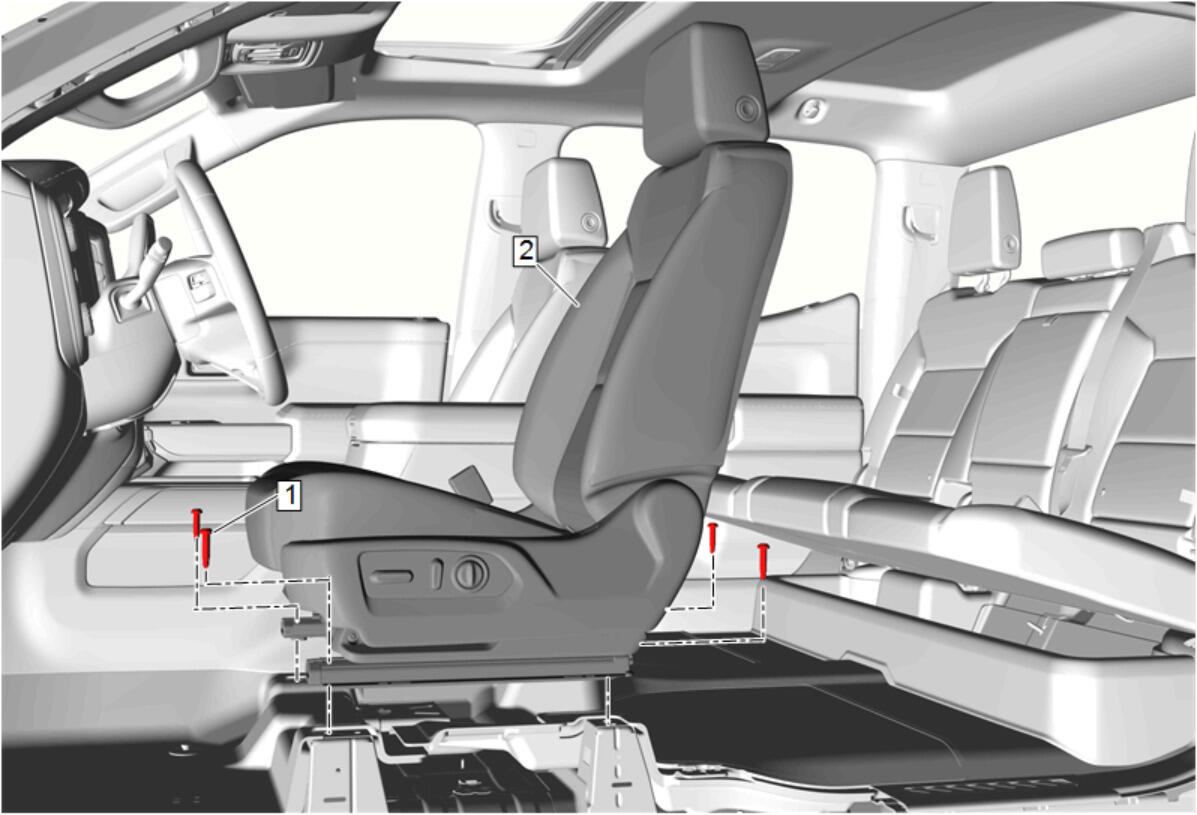

  2. GM4996140Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install - Front Seat Removal and Installation
