Installation Procedure

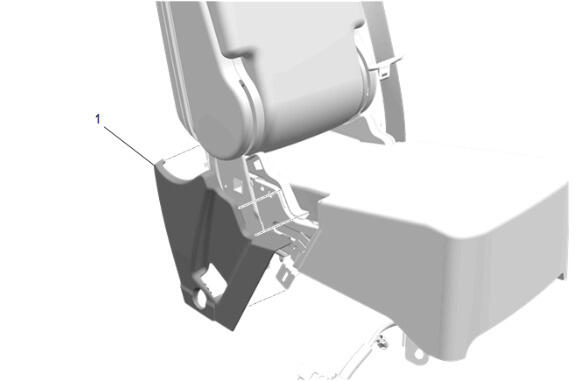

GM5903830Courtesy of GENERAL MOTORS COMPANY
  1. Front Seat Center Armrest Hinge Finish Cover-Lower (1) - Install
  2. Front Seat Center Belt Buckle - Install
  3. GM5027621Courtesy of GENERAL MOTORS COMPANY

    Front Center Seat (3) - Install - Front Center Seat Removal and Installation
