Installation Procedure

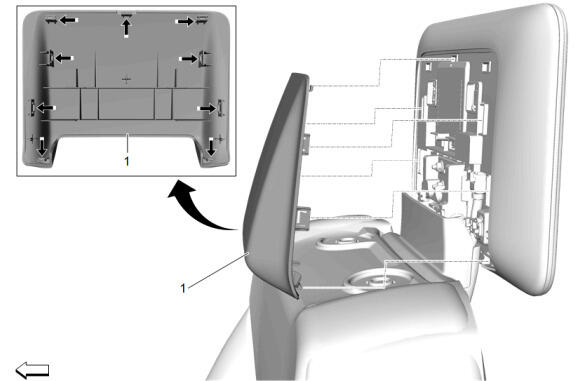

  1. GM5585751Courtesy of GENERAL MOTORS COMPANY

    Front Seat Back Upper Cover (1) - Install

  2. GM5584389Courtesy of GENERAL MOTORS COMPANY

    Front Seat Head Restraint Guide Bezel (1) - Install [2x]

  3. Front Seat Head Restraint (3) - Install
