Installation Procedure

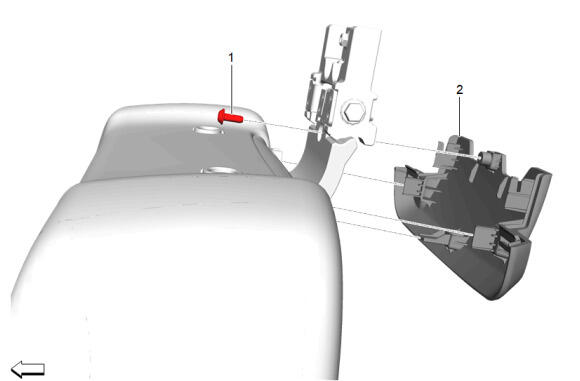

  1. GM5585758Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Seat Back Upper Cover-Lower (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Bolt (1) - Install and tighten - Fastener Specifications
  3. GM5585764Courtesy of GENERAL MOTORS COMPANY

    Front Seat Back Opening Bezel (1) - Install

  4. GM5585751Courtesy of GENERAL MOTORS COMPANY

    Front Seat Back Upper Cover (1) - Install

  5. GM5584389Courtesy of GENERAL MOTORS COMPANY

    Front Seat Head Restraint Guide Bezel (1) - Install [2x]

  6. Front Seat Head Restraint (3) - Install
