Installation Procedure

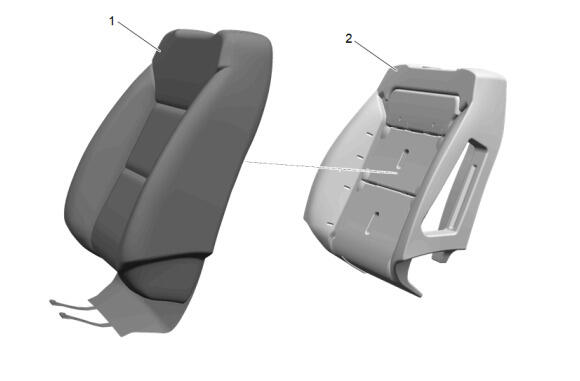

  1. GM5589735Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure the seat heater is not folded or creased during installation as damage to the internal circuitry may occur, causing performance issues and damage to seat components.

    If replacing the front seat back pad (2), install NEW front seat back heater and front seat back vent fan mat, if equipped.

  2. Install the front seat back cover (1) onto the front seat back pad (2).
  3. GM5587520Courtesy of GENERAL MOTORS COMPANY

    Front Seat Back Cover and Pad (1) - Install - Front Seat Back Cover and Pad Removal and Installation

  4. If servicing the passenger seat, perform the necessary programming and setup procedure for the passenger presence system. Control Module References
