Installation Procedure

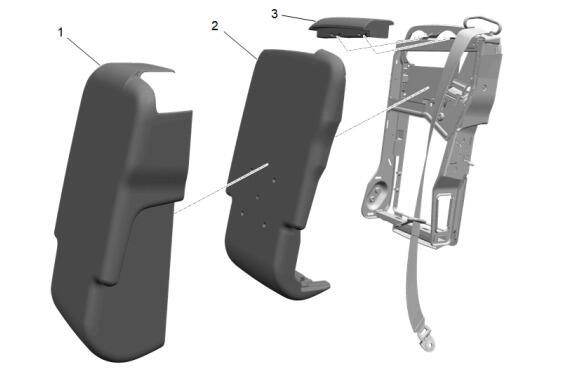

  1. GM5577871Courtesy of GENERAL MOTORS COMPANY

    Front Seat Back Pad-Upper (3) - Install

  2. Front Seat Back Pad (2) - Install
  3. Front Seat Back Cover (1) - Install
  4. Connect retainers to the seat back cushion frame.
  5. Connect the J-channel retainers.
  6. GM5045524Courtesy of GENERAL MOTORS COMPANY

    Front Seat Armrest Lid (3) - Install

    7. CAUTION:

    Refer to Fastener Caution .

  7. Front Seat Armrest Lid Bolt (2) - Install and tighten [4x] - Fastener Specifications
  8. Front Seat Armrest Hinge Finish Cover (1) - Install

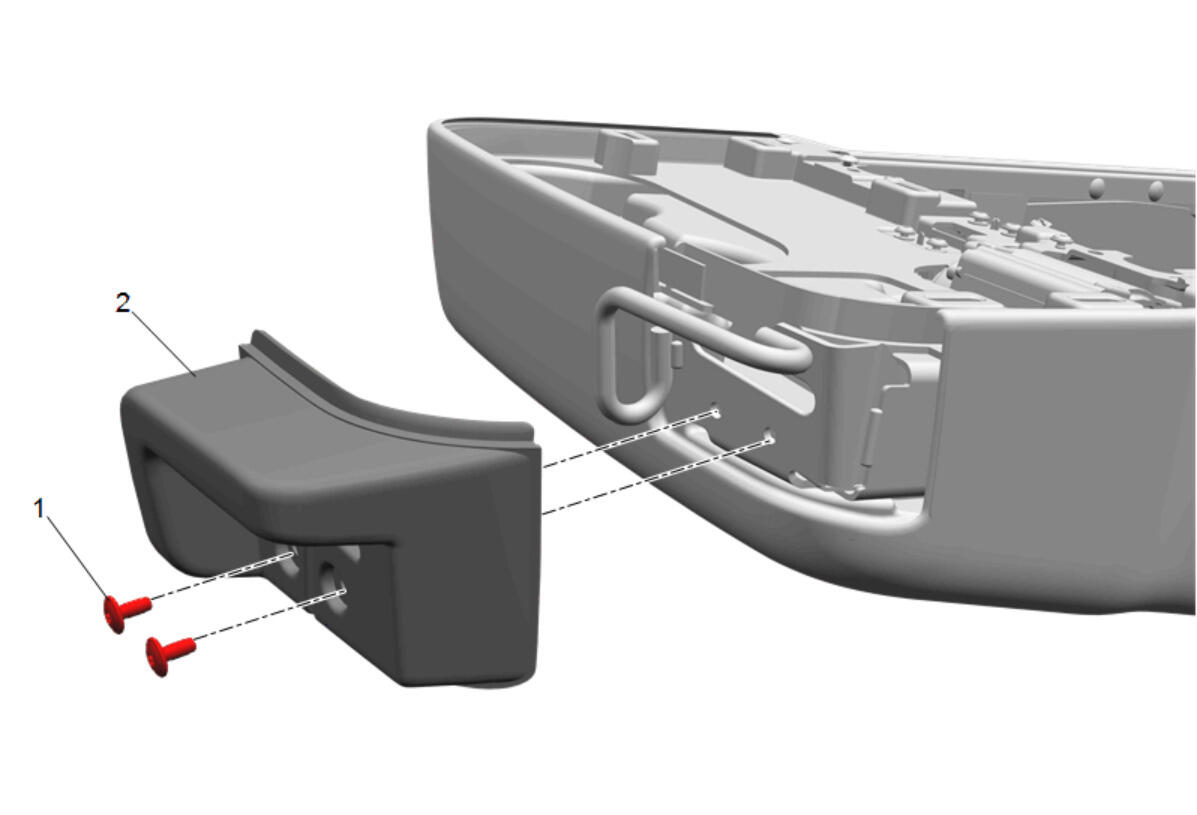

  9. GM5045538Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Opening Bezel (2) - Install

  10. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  11. Front Seat Belt Opening Bezel Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5657503Courtesy of GENERAL MOTORS COMPANY

    Front Seat Stowage Compartment (3) - Install

  13. Front Seat Stowage Compartment Bolt -Rear (2) - Install and tighten - Fastener Specifications
  14. Front Seat Stowage Compartment Bolt -Front (1) - Install and tighten [2x] - Fastener Specifications
  15. GM5045545Courtesy of GENERAL MOTORS COMPANY

    Front Seat Armrest Cup Holder (3) - Install

  16. Front Seat Armrest Cup Holder Bolt (2) - Install and tighten [2x] - Fastener Specifications
  17. Front Center Seat Cup Holder (1) - Install
  18. GM5577851Courtesy of GENERAL MOTORS COMPANY

    Front Seat Center Armrest Hinge Finish Inner Cover (1) - Install [2x]

  19. GM5045528Courtesy of GENERAL MOTORS COMPANY

    Front Center Seat Armrest (2) - Install

  20. Front Seat Center Armrest Bolt (1) - Install and tighten [2x] - Fastener Specifications
  21. Connect the latch release cable.
  22. GM5903822Courtesy of GENERAL MOTORS COMPANY

    Front Seat Center Armrest Hinge Finish Cover-Lower (1) - Install

  23. Front Seat Center Belt Anchor Plate - Install
  24. GM5282281Courtesy of GENERAL MOTORS COMPANY

    Front Seat Armrest Adjust Retainer (3) - Install

  25. Front Seat Armrest Adjust Retainer Bolt (2) - Install and tighten - Fastener Specifications
  26. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  27. Front Seat Center Armrest Pivot Bolt (1) - Install and tighten - Fastener Specifications
  28. GM5045533Courtesy of GENERAL MOTORS COMPANY

    Front Seat Center Armrest Hinge Finish Cover- Upper (1) - Install [2x]

  29. GM5027621Courtesy of GENERAL MOTORS COMPANY

    Front Center Seat (3) - Install - Front Center Seat Removal and Installation
