Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Seat Adjuster Switch Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

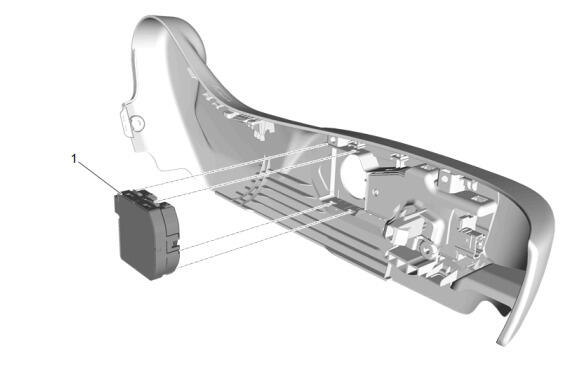

Front Seat Lumbar Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

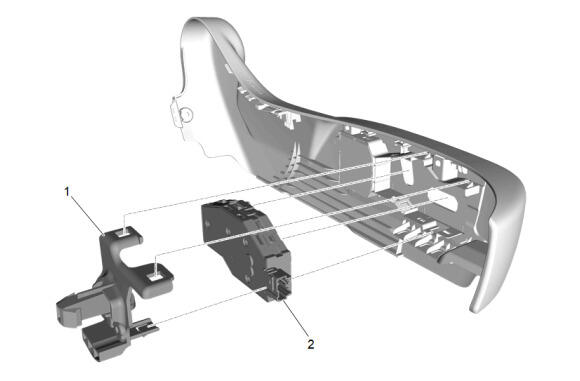

Front Seat Adjuster Switch (2) - Install
Front Seat Adjuster Finish Cover Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors and install the wiring harness retainers as necessary.

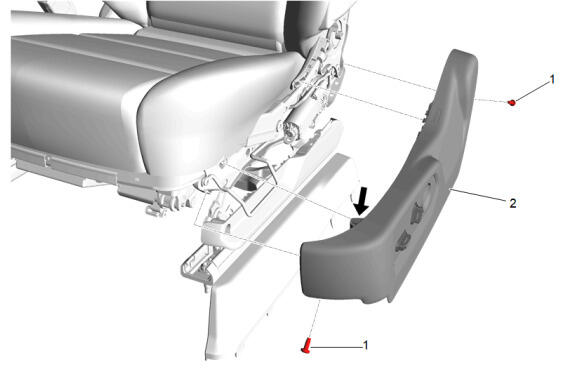

Front Seat Cushion Outer Finish Cover (2) - Install

CAUTION:

Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
Return the seat to its original position.
Courtesy of GENERAL MOTORS COMPANY

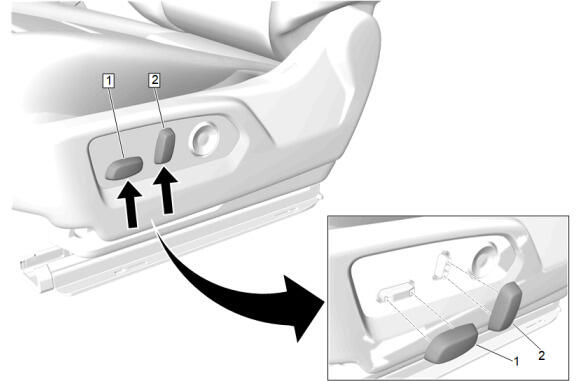

Front Seat Recliner Switch Knob (2) - Install
Front Seat Adjuster Switch Knob (1) - Install
