Installation Procedure

  1. GM5584622Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Lower Finish Cover (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Bolt (1) - Install and tighten - Fastener Specifications

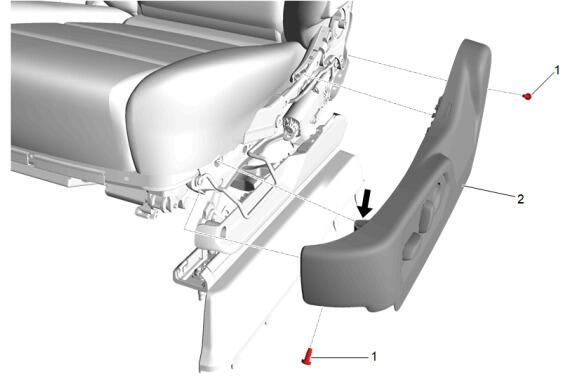

  3. GM5584617Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Seat Cushion Outer Finish Cover (2) - Install
  5. Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. Return the seat to its original position.
