Installation Procedure

  1. GM5617577Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Riser (1) - Install

  2. GM5612607Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Frame (1) - Install

  3. GM5612606Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    4. CAUTION:

    Refer to Fastener Caution .

  4. 3rd Row Seat Cushion Frame Link Bolt (3) - Install and tighten [2x] - Fastener Specifications
  5. 3rd Row Seat Cushion Frame Bolt - Front (2) - Install and tighten [2x] - Fastener Specifications
  6. 3rd Row Seat Cushion Frame Bolt - Rear (1) - Install and tighten [2x] - Fastener Specifications
  7. GM5616784Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Frame (1) - Install

  8. GM5616783Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  9. 3rd Row Seat Cushion Frame Link Bolt (3) - Install and tighten [2x] - Fastener Specifications
  10. 3rd Row Seat Cushion Frame Bolt - Front (2) - Install and tighten [2x] - Fastener Specifications
  11. 3rd Row Seat Cushion Frame Bolt - Rear (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5614493Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Frame Dampener (2) - Install [2x]

  13. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  14. Rear Seat Cushion Frame Dampener Bolt (1) - Install and tighten [2x] - Fastener Specifications
  15. GM5608765Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (2) - Install

  16. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    17. NOTE:

    Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

  17. 3rd Row Seat Back Frame Bolt (1) - Install and tighten [4x] - Fastener Specifications
  18. GM5615211Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (2) - Install

  19. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    20. NOTE:

    Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

  20. 3rd Row Seat Back Frame Bolt (1) - Install and tighten [4x] - Fastener Specifications
  21. GM5618131Courtesy of GENERAL MOTORS COMPANY

    Connect the 3rd row seat back latch cable end (1) to the seat back latch.

  22. GM5618132Courtesy of GENERAL MOTORS COMPANY

    Connect the 3rd row seat back latch cable end (1) to the seat back latch.

  23. GM5618129Courtesy of GENERAL MOTORS COMPANY

    Connect both 3rd row seat back latch release handle cable ends (1) to the seat back latch.

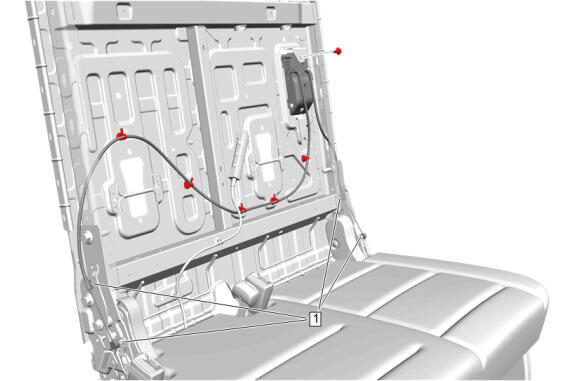

  24. GM5618130Courtesy of GENERAL MOTORS COMPANY

    Connect both 3rd row seat back latch release handle cable ends (1) to the seat back latch.

  25. GM5615187Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Inner Cover-Inside Inner (2) - Install [2x]

  26. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  27. GM5615185Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Cover-Inside Outer (2) - Install [2x]

  28. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  29. GM5615547Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Inner Cover- Inner (2) - Install

  30. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  31. GM5615549Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Cover- Outer (2) - Install

  32. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  33. GM5615189Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Inner Cover- Inner (2) - Install

  34. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  35. GM5615184Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Cover- Outer (2) - Install

  36. 3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
  37. GM5613326Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle (1) - Install

  38. GM5613325Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Nut (1) - Install and tighten - Fastener Specifications

  39. GM5613317Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle (1) - Install

  40. GM5613316Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Nut (1) - Install and tighten - Fastener Specifications

  41. GM5608211Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Cover and Pad (1) - Install - 3rd Row Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent)

  42. GM5615191Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Cover and Pad (1) - Install - 3rd Row Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent)

  43. GM5606273Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Cover and Pad (1) - Install - 3rd Row Seat Back Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Back Cover and Pad Removal and Installation (60 Percent)

  44. GM5615181Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Cover and Pad (1) - Install - 3rd Row Seat Back Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Back Cover and Pad Removal and Installation (60 Percent)
