Installation Procedure

  1. GM5598917Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    During 3rd row seat installation, ensure both 3rd row seat belts are routed along the outside of the outer 3rd row seat hinge finish covers to prevent the seat belt from getting caught in the latch. Failure to route the seat belt correctly could result in personal injury.

    3rd Row Seat (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Refer to Fastener Caution .

  3. 3rd Row Seat Bolt - Rear (1) - Install and tighten [5x] - Fastener Specifications

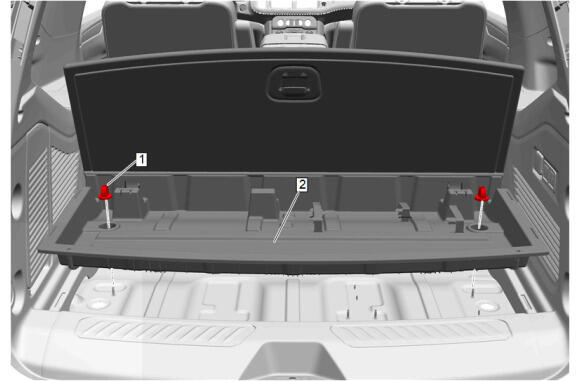

  4. GM5598915Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Trim Compartment (2) - Install

    5. NOTE:

    Quantity of retainers may vary based on option content.

  5. Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [2x] - Fastener Specifications

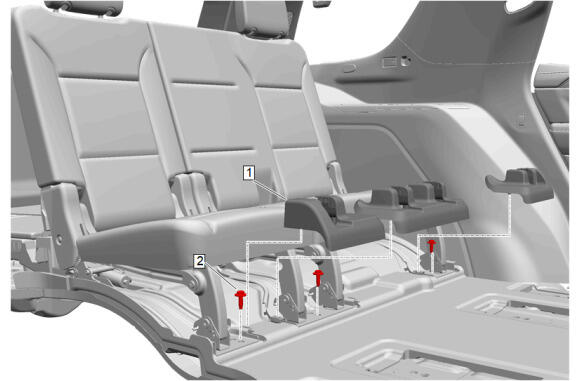

  6. GM5598914Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Bolt - Front (2) - Install and tighten [3x] - Fastener Specifications

  7. 3rd Row Seat Riser Cover (1) - Install [3x]

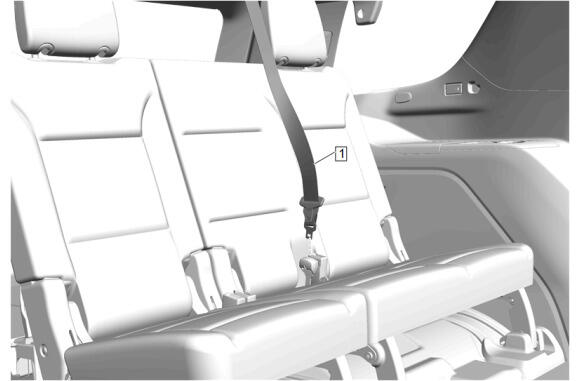

  8. GM5598913Courtesy of GENERAL MOTORS COMPANY

    Connect the rear seat belt mini-latch (1).
