Installation Procedure

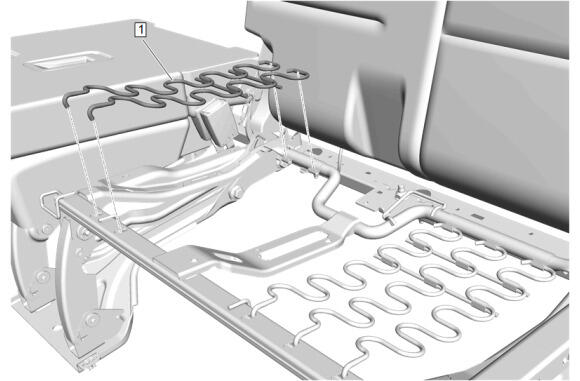

  1. GM5615196Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Pad Support- Center (1) - Install

  2. GM5615191Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Cover and Pad (1) - Install - 3rd Row Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent)
