Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat Cushion Frame (1) - Install
Courtesy of GENERAL MOTORS COMPANY

If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

CAUTION:

Refer to Fastener Caution .

3rd Row Seat Cushion Frame Link Bolt (3) - Install and tighten [2x] - Fastener Specifications
3rd Row Seat Cushion Frame Bolt - Front (2) - Install and tighten [2x] - Fastener Specifications
3rd Row Seat Cushion Frame Bolt - Rear (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

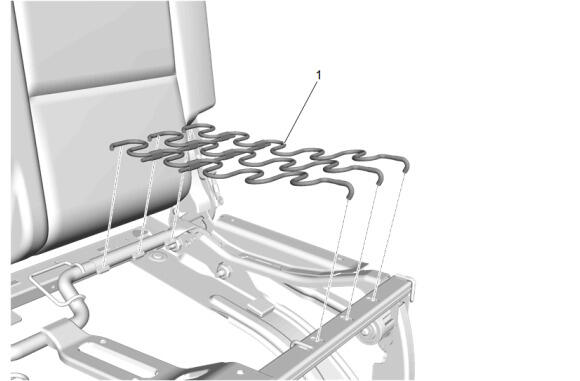

3rd Row Seat Cushion Pad Support- Outer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Rear Seat Cushion Frame Dampener (2) - Install
{If equipped} If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
{If equipped} Rear Seat Cushion Frame Dampener Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Some components not shown for graphic clarity.
- Left side shown, right side similar.
3rd Row Seat Hinge Finish Inner Cover-Inside Inner (2) - Install
3rd Row Seat Hinge Finish Cover Pin (1) - Install
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Some components not shown for graphic clarity.
- Left side shown, right side similar.
3rd Row Seat Hinge Finish Cover-Inside Outer (2) - Install
3rd Row Seat Hinge Finish Cover Pin (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

3rd Row Seat Hinge Finish Inner Cover- Inner (2) - Install
3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

3rd Row Seat Hinge Finish Cover- Outer (2) - Install
3rd Row Seat Hinge Finish Cover Pin (1) - Install [2x]
Return the seat back cover and pad to the original position.

NOTE:

Hold both sides of the seat cover together while pulling straight down on the zipper.

Zip the seat back cover zippers.
Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat Cushion Cover and Pad (1) - Install - 3rd Row Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent)
