Installation Procedure

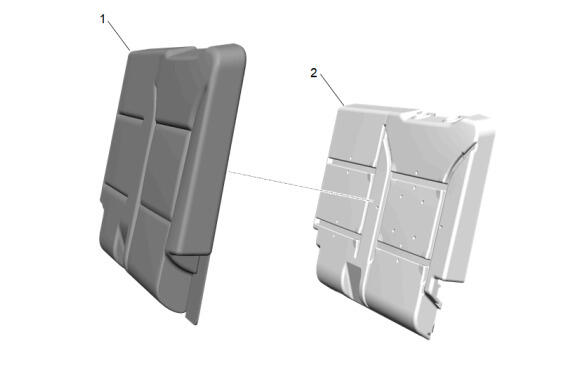

  1. GM5615182Courtesy of GENERAL MOTORS COMPANY

    Install the 3rd row seat back cover (1) to the 3rd row seat back pad (2).

  2. GM5615181Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Cover and Pad (1) - Install - 3rd Row Seat Back Cover and Pad Removal and Installation (40 Percent) , or 3rd Row Seat Back Cover and Pad Removal and Installation (60 Percent)
